Product Information:

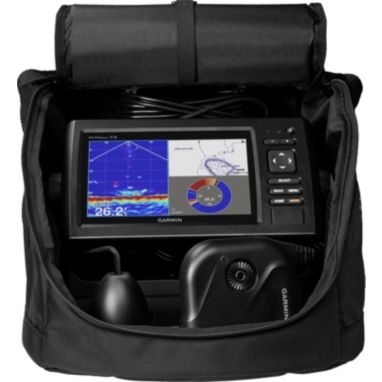

Pair three sophisticated types of sonar with the echoMAP™ CHIRP 73cv for the ultimate ice fishing excursion with the Garmin® Panoptix Ice Fishing Bundle. See what is happening below the ice in real time with LiveVu Forward and LiveVu Down technology. Get crystal clear definition with CHIRP sonar for crisp and defined imagery by sending a continuous sweep of frequencies. Customize your experience and get more views on one screen with the Panoptix Ice Fishing Bundle.


  • Includes Panoptix PS22 transducer with LiveVü Forward and LiveVü Down sonars for real-time moving images up to 100’ horizontally around you, below the ice
  • GT10HN-IF ice fishing transducer with Garmin CHIRP traditional sonar and narrow beam angle (8 to 16 degrees) for precise fish and jig detection
  • Preloaded LakeVü HD maps provide industry-leading detail on more than 17,000 lakes
  • Ability to create custom combination screen to include flasher, map and Panoptix views
  • Easy-to-use interface for quick setup
  • Tide tables


  • Physical dimensions: 9.8" x 5.5" x 2" (25cm x 13.9cm x 5.1cm)
  • Weight: 1.7 lbs. (0.77kg)
  • Water rating: IPX7
  • Display type: WVGA display
  • Display size: 6.0" x 3.6"; 7.0" diagonal (15.2 x 9.1 cm; 17.8cm diagonal)
  • Display resolution: 800 x 480 pixels
  • Power consumption: 6.2W
  • Antenna: Internal or external over NMEA 2000
  • Mounting options: Bail or flush
  • Receiver: 5 Hz
  • Garmin Marine Network™ ports: 1 Panoptix™ port


  • Accepts data cards: 1 microSD™ card
  • Waypoints: 5,000
  • Routes: 100
  • Track log: 50,000 points; 50 saved tracks
  • Preloaded maps: LakeVü HD (inland maps)


  • Garmin Sonar compatible
  • Supports AIS (tracks target ships position)
  • Supports DSC (displays position data from DSC-capable VHF radio)


  • Dual-frequency (50/200 kHz) sonar capable
  • Dual-beam (77/200 kHz) sonar capable
  • Frequencies supported: CHIRP (low, mid, high), Traditional: 50/77/200 kHz, ClearVü: 260/455/800 kHz
  • Transmit power: 500 W (RMS) / 4,000 W (peak to peak)
  • CHIRP sonar technology: Yes (built-in)
  • ClearVü : Yes with CHIRP (built-in)
  • SideVü: No
  • Maximum depth: 2,300 ft @ 77 kHz, freshwater, 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions)
  • Bottom lock (shows return from the bottom up)
  • Water temperature log and graph
  • Sonar recording
  • Sonar history rewind


  • NMEA 2000® compatible
  • Transducer pin numbers: 8
  • NMEA 0183 input ports: 1
  • NMEA 0183 output ports: 1
  • Video input ports: None
  • Video output ports: None
  • Wireless connectivity: No


  • echoMAP CHIRP 73cv
  • Panoptix PS22-TR transducer
  • Panoptix Ice Fishing Mount
  • GT10HN-IF transducer
  • Portable Ice Fishing Kit
  • Portable carry bag
  • Battery
  • Charger
  • Power cable
  • Transducer adapter cable
  • Foam float
  • Cable grommet
  • Brand: Garmin
  • Country of Origin: Imported
