Garmin Panoptix LiveScope System-Floor Model

sorry, Garmin Panoptix LiveScope System-Floor Model is currently out of stock

Garmin Panoptix LiveScope System-Floor Model

Sorry, this item is out of stock

shop all fish finders
About This Item

FLOOR MODEL:

  • All floor models are sold as is, final sale
  • Website images do not reflect the actual condition of the equipment

SONAR:

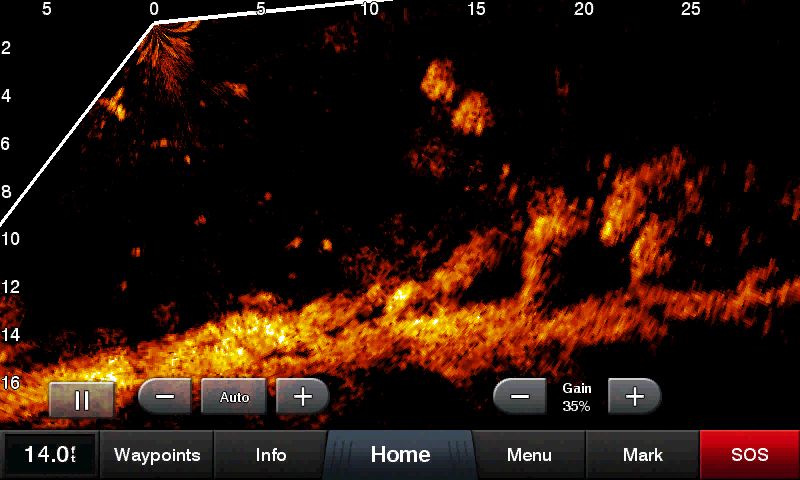

  • Highly detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming in real time; even when boat is stationary
  • Transducer can be easily adjusted to point forward for seeing crystal-clear images around the boat or pointed down to see directly below
  • Creates sharp real-time scanning sonar images up to 200 ft. down and away
  • Attitude Heading Reference System (AHRS) stabilizes sonar view on chartplotter screen, even in rough conditions
  • Clear, colorful sonar features 7 new vivid color options to see structures and fish in all-out clarity and contrast

CONNECTIVITY:

  • Plug-and-play Garmin™ Marine Network connector for easy installation and seamless integration with compatible Garmin™ chartplotter
  • Brand : Garmin
  • Country of Origin : Imported
  • Style : 010-01864-00
  • DSG Pro Tips
  • Web ID: 18GMNUPNPTXLVSCPXFEL

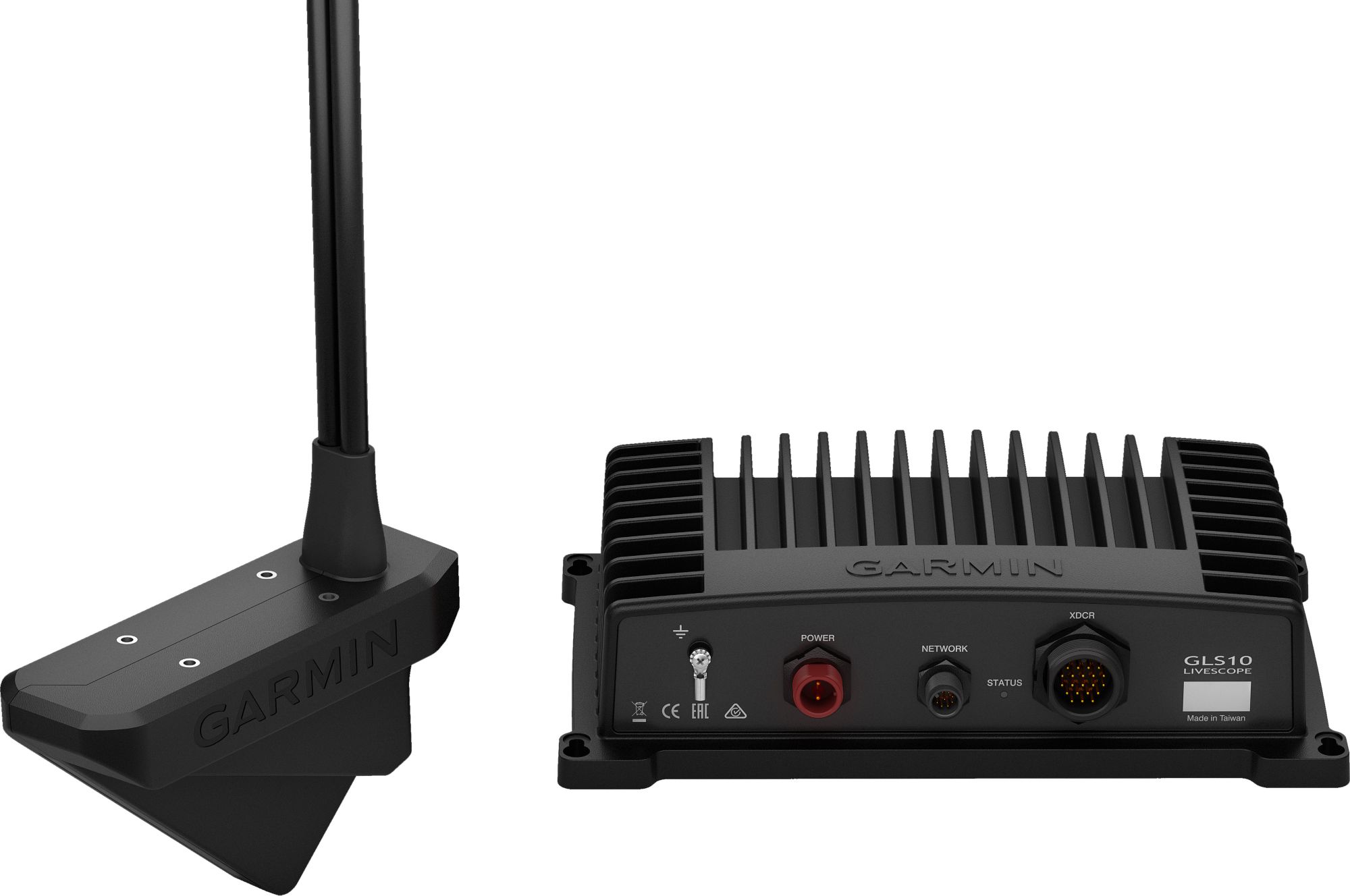

Physical Dimensions:GLS 10 sonar black box: 9.6 in. x 5.9 in. x 2.6 in.; LVS32 transducer: 5.4 in. x 3.8 in. 1.8 in.
Weight:GLS 10 sonar black box: 4.3 lbs.; LVS32 transducer: 1.9 lbs.
Water Rating:IPX7
Transmit Power:500 W
Garmin Marine Network™ Ports:1 (small connector)
Temperature Range:GLS 10 sonar black box:-15 C; LVS32 transducer: Operating: 0 C to 40 C
Frequencies Supported:530-1,100 kHz
Maximum Depth:Down and Forward: 200 ft.
Power Input:10-32V
Power Usage:21 W typical, 58 W max
Fuse:7.5 A
Beamwidth:20° x 135°
Transducer Cable Length:Down and Forward: 20 ft.
Transducer Number of Pins:Down and Forward: 21
