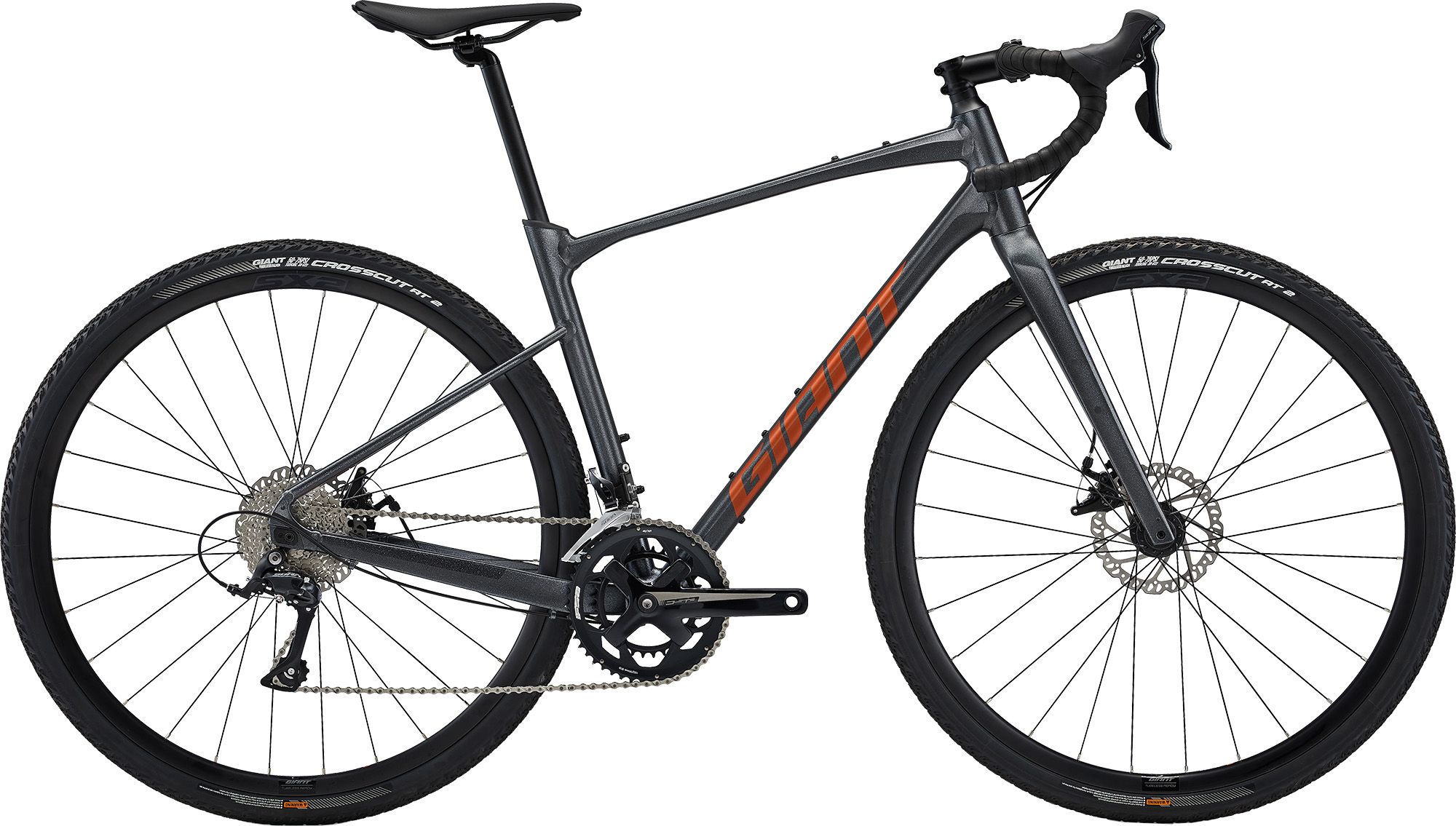

Giant Adult 700c Revolt 2 Gravel Bike

About This Item

Manufacturer may substitute components with components of equal or greater performance level


Features:

  • Lightweight and durable ALUXX aluminum frame features 6061 alloy with single-butted tubes to produce strong and durable framesets
  • Frame is designed with endurance positioning and shorter chainstays for precise handling, agility, and control
  • Longer reach, shorter stem, and lower bottom bracket drop improves stability on rugged terrain
  • Thin, dropped seatstays absorb road shocks and vibrations
  • D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting, or climbing
  • Flip Chip allows riders to quickly adjust the geometry and rear-wheel tire clearance with eccentric, offset two-position hardware in the rear wheel dropouts
  • Tubeless system provides greater traction with less rolling resistance for faster movement
  • Oversized fork steerer tube technology is designed to provide precise front-end steering performance



NOTICE: Used Bikes and/or bikes purchased online that have been assembled are non-returnable. We strongly recommend that a professional bicycle mechanic properly assembles, repairs, and maintains the bicycle. DICK'S Sporting Goods will provide free in-store assembly service by a certified technician for any bicycle purchased on our website or in our stores (proof of purchase required). If you choose to assemble the bicycle yourself, DICK'S Sporting Goods is not responsible for injuries or damages resulting from improper assembly.

  • Brand : Giant
  • Country of Origin : Imported
  • Style : REVOLT2
  • Web ID: 24XGLMRVLT2XXXXXXBAC

Frameset:

Frame Sizes: XS, S, M, M/L, L, XL
Frame: ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Drivetrain:

Shifters: Shimano Sora, 2x9
Rear Derailleur: Shimano Sora, long cage
Crankset: FSA Vero Pro, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Chain: KMC X9 with Missing Link
Cassette: Shimano HG400, 11x34

Brakes:

Brakeset: Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: Shimano Sora

Wheels:

Wheel Size: 700c
Spokes, Rims, and Hubs: Giant S-X2 Disc wheelset
Tires: Giant CrossCut AT 2, 700x38c, tubeless

Components:

Frame Size:XSSMM/LLXL
Seat Tube Length (in.):16.917.718.519.320.120.9
Seat Tube Angle:74.0°73.5°73.5°73.0°73.0°73.0°
Top Tube Length (in.):21.321.72222.62323.6
Head Tube Length (in.):4.95.35.96.57.17.7
Head Tube Angle:70.0°71.0°71.5°72.0°72.0°72.0°
Trail (in.):3.12.82.72.62.62.6
Wheelbase (in.):40.540.440.640.741.141.8
Chain Stay Length (in.):16.916.916.916.916.916.9
Bottom Bracket Drop (in.):3.13.13.13.13.13.1
Stack (in.):21.922.423.123.724.324.8
Reach (in.):151515.215.415.616
Stand Over Height (in.):28.228.929.630.330.931.5
Handlebar Width (in.):16.516.517.317.318.118.1
Stem Length (in.):2.83.13.53.93.94.3
Crank Length (in.):6.76.76.86.86.96.9
