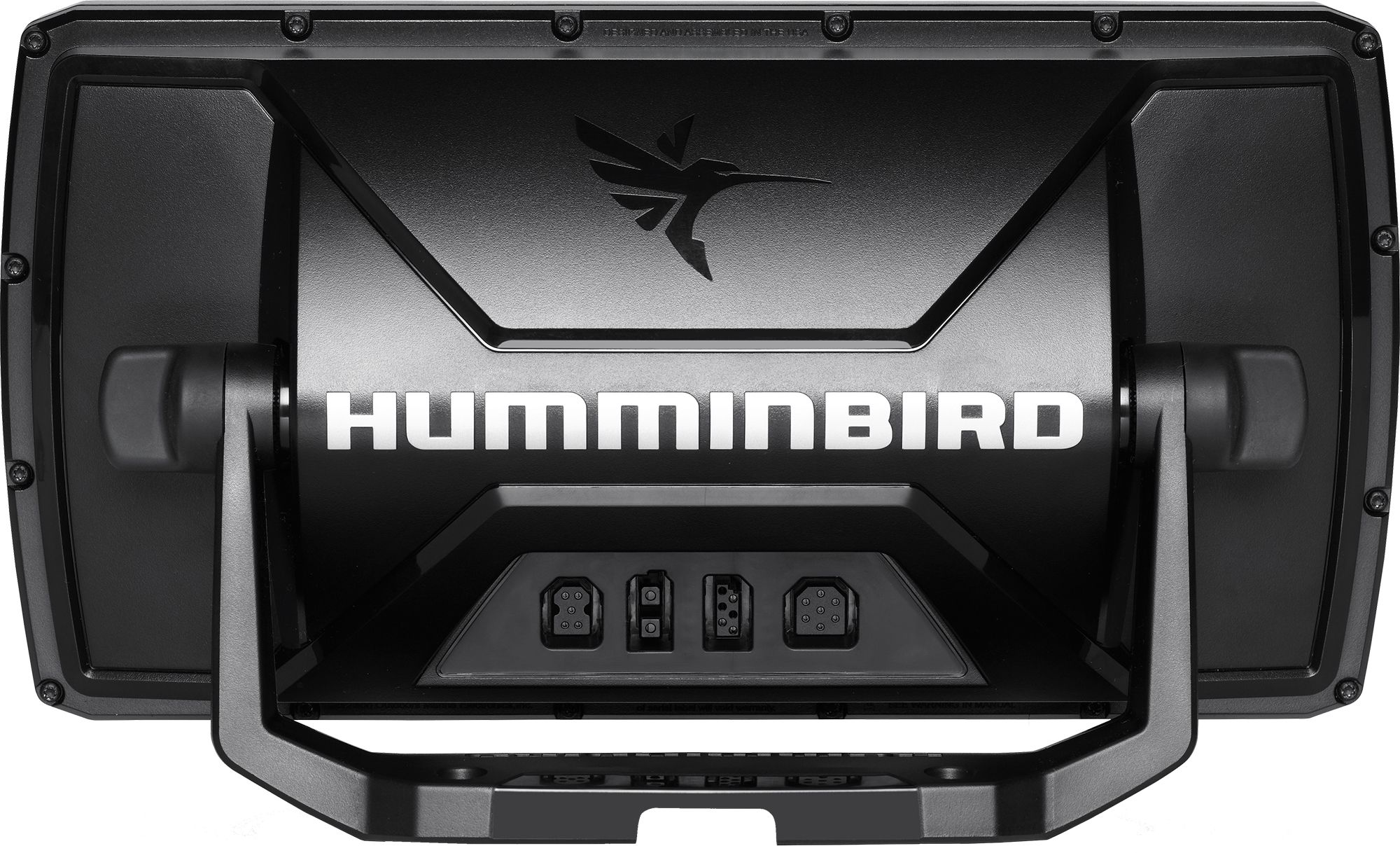

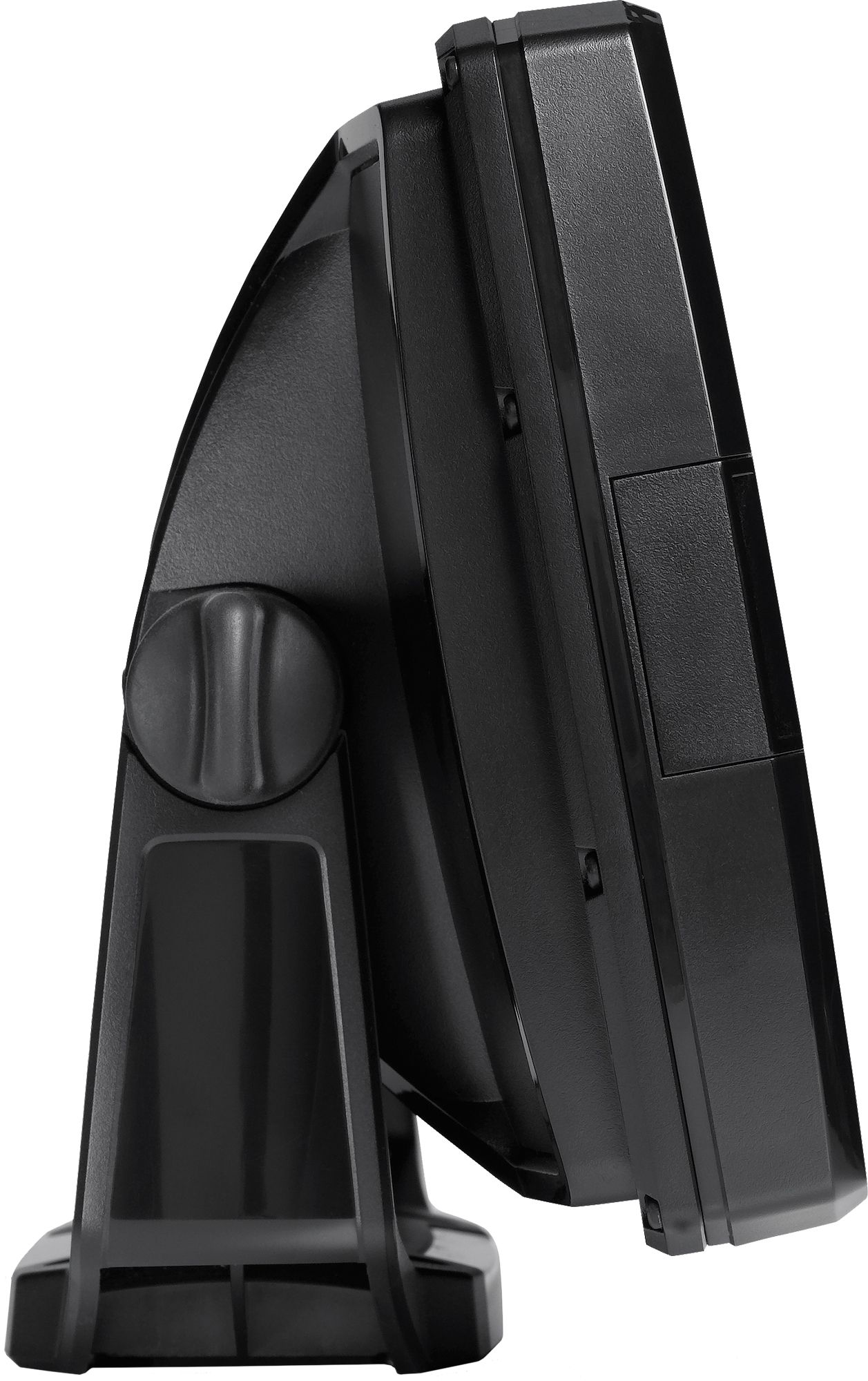

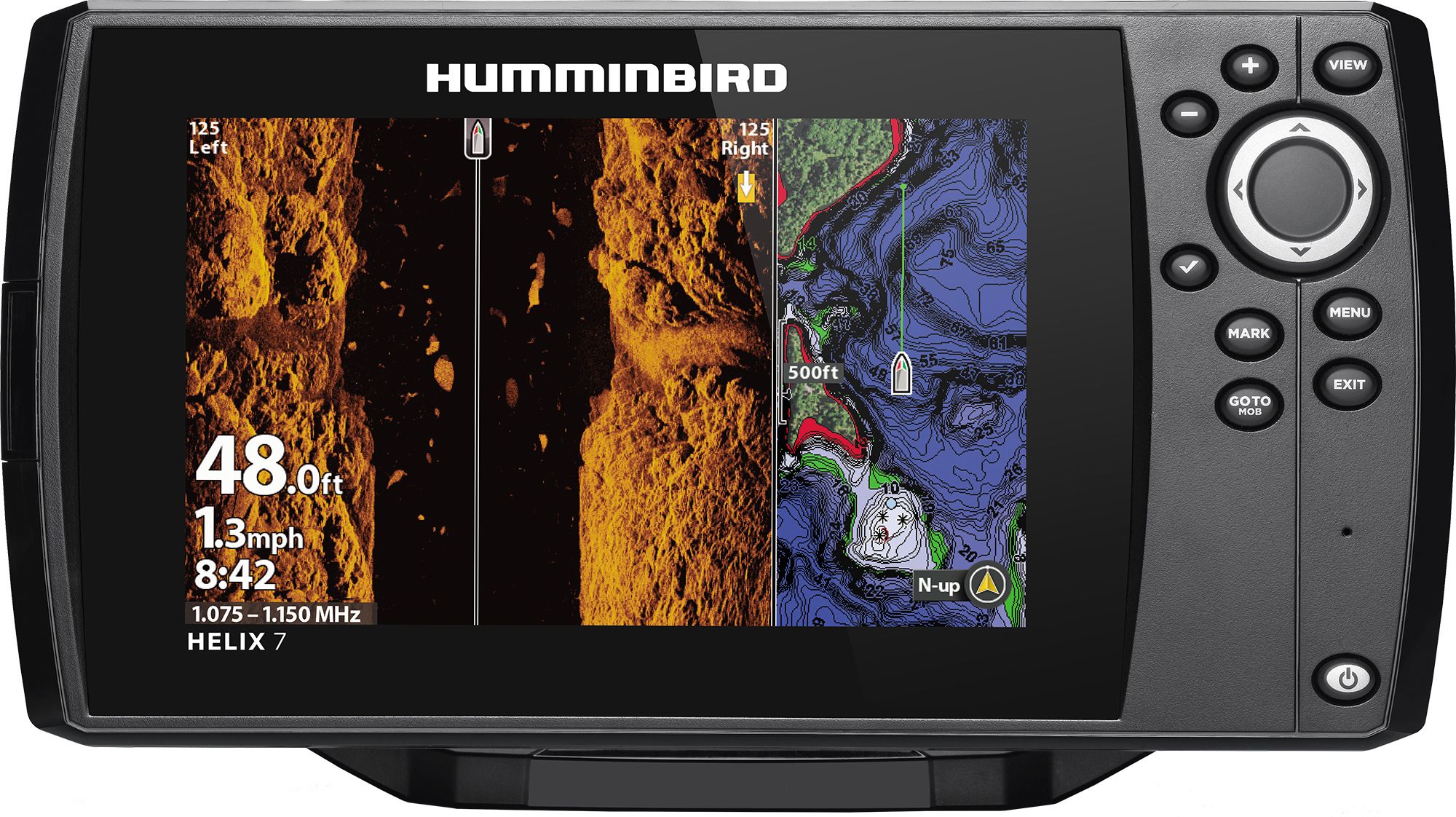

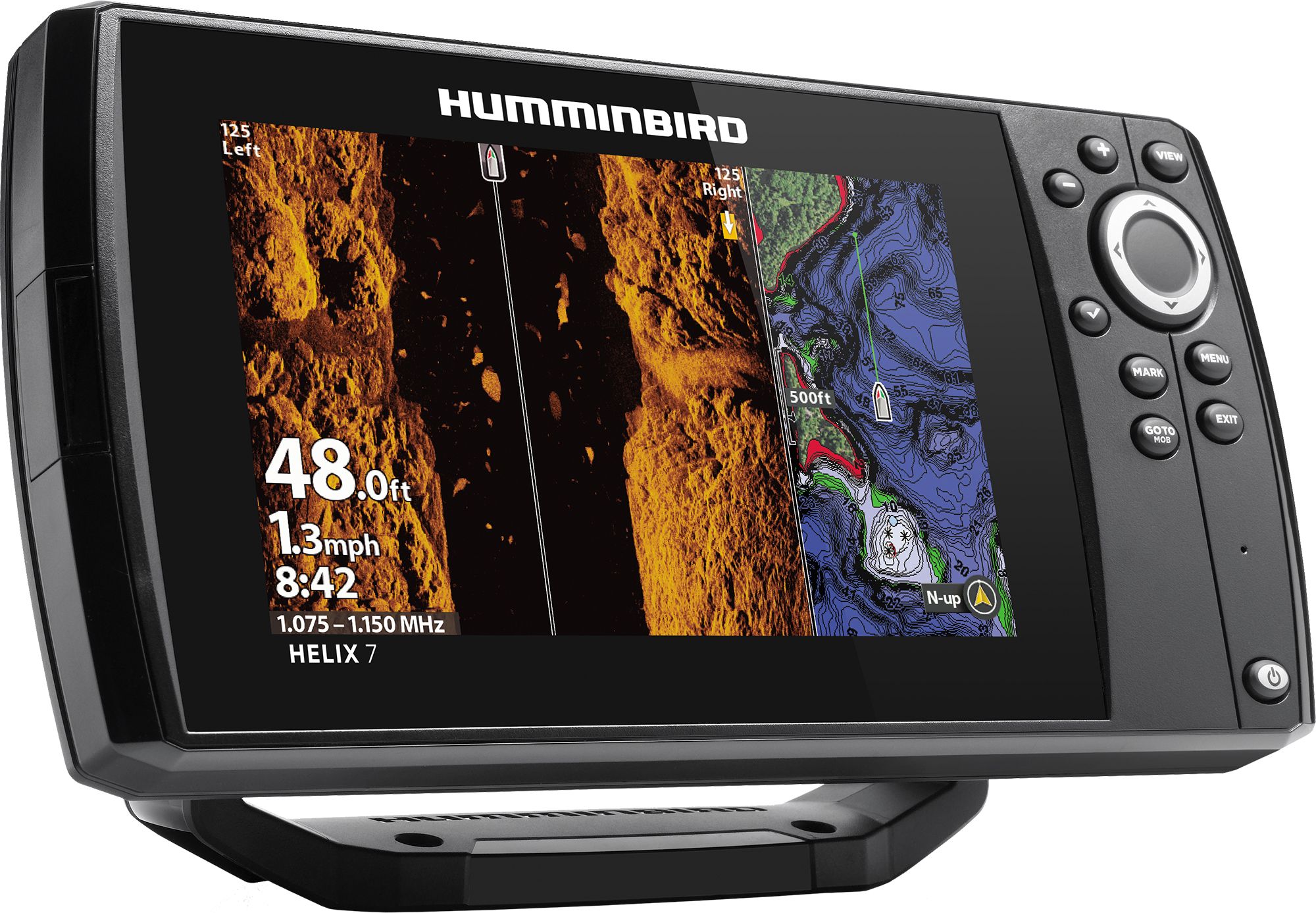

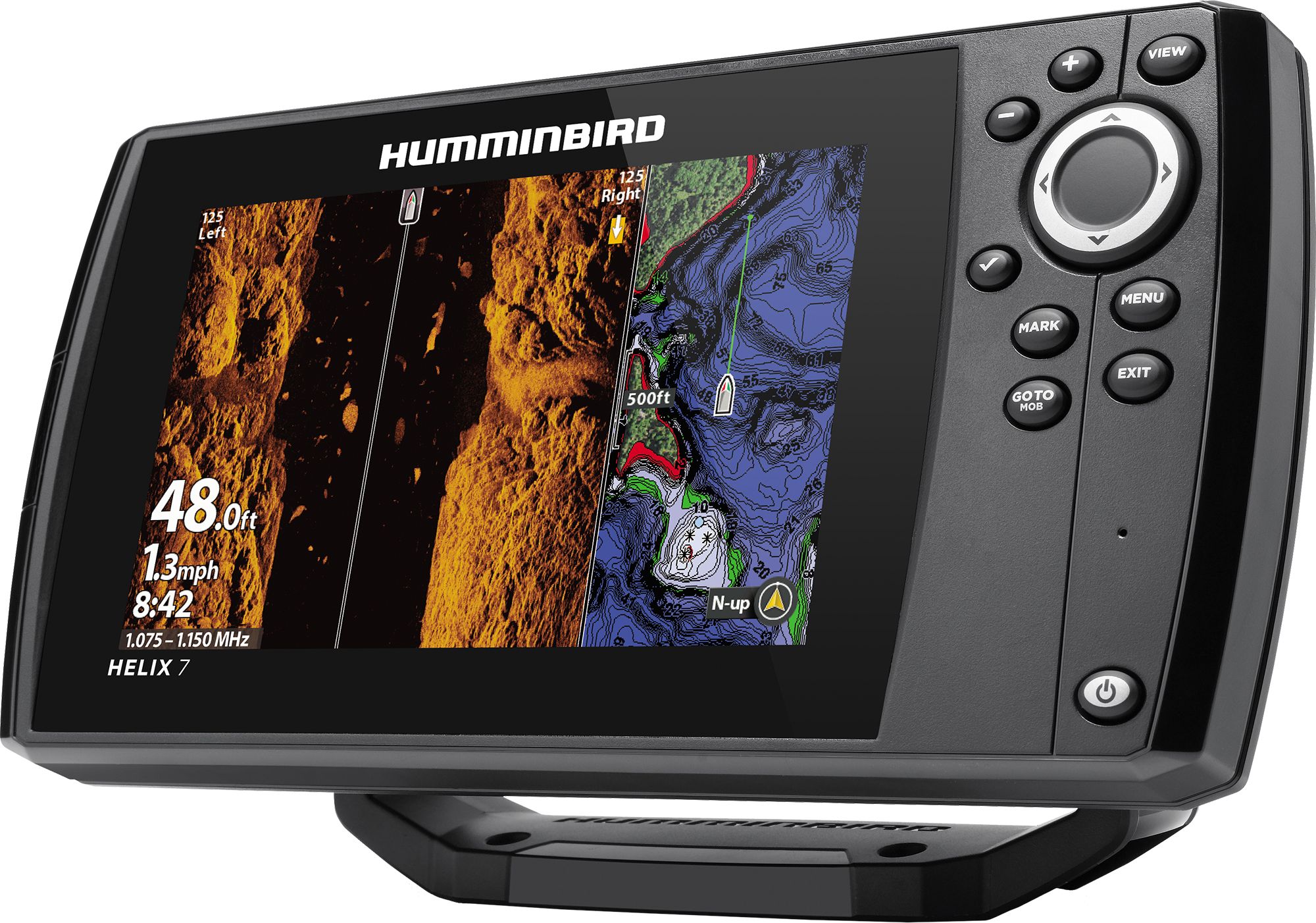

Humminbird Helix 7 CHIRP MEGA SI G3 NAV+ GPS Fish Finder (410950-1NAV)-Floor Model

sorry, Humminbird Helix 7 CHIRP MEGA SI G3 NAV+ GPS Fish Finder (410950-1NAV)-Floor Model is currently out of stock

Humminbird Helix 7 CHIRP MEGA SI G3 NAV+ GPS Fish Finder (410950-1NAV)-Floor Model

Sorry, this item is out of stock

shop all fish finders
About This Item

FLOOR MODEL:

  • All floor models are sold as is, final sale
  • Website images do not reflect the actual condition of the equipment

SONAR:

  • MEGA Side Imaging for exceptionally clear images up to 125 ft. around your boat
  • Dual Spectrum CHIRP Sonar with two search modes (wide mode for maximum coverage and narrow mode for maximum detail)
  • SwitchFire Sonar changes sonar return appearance with two display modes that let you add/remove detail, account for water depth, temperature and turbulence, and even watch lure presentations

NAVIGATION:

  • Built-in GPS
  • Includes Navionics+ SD card for map coverage of over 21,000 lakes and waterbodies
  • Built-in Humminbird Basemap featuring more than 10,000 lakes (plus coastal coverage for the U.S.) gives you a clear view of underwater terrain and surrounding points of interest (including buoys, day markers, hazards, marinas, contours, depth markers and more)
  • AutoChart Live creates real-time maps with depth, vegetation and bottom hardness
  • LakeMaster Maps compatible for easy-to-read contours, highlighted depth ranges and adjustable water levels
  • AIS compatible to track other vessels for safer navigation
  • CHIRP Radar compatible

ADDITIONAL DETAILS:

  • Single Micro SD Slots
  • High Definition display
  • Keypad interface
  • Includes transducer and mounting hardware, power cable and gimbal mounting bracket
  • Web ID: 20HMBUHLX7CHRPMSGFELA
Display Size:7"
Display Resolution:800H x 480V
Display Type:Color TFT
Sonar Standard:Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging
Sonar Coverage:20°, 42°, 60° and (2) 86° @ -10dB
Sonar Optional:50 kHz, 50/Low Airmar CHIRP
CHIRP Frequencies supported:Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar Frequencies supported:50/83/200/455 kHz
CHIRP Images Frequencies supported:MEGA DI (1075-1150 kHz), MEGA SI (1075-1150 kHz), 455 kHz (440-500 kHz)
Depth Down Imaging:480 ft (455 kHz), 75 ft (MEGA)
Depth Sonar:1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
Power Output:4,000W (peak to peak), 500W (RMS)
Power Input:10.8-20 VDC
Power Draw:800 mA
Transducer:XNT 9 HW MSI 150 T
Mount- Standard:Gimbal
Mount- Standard Size:10.54 x 5.8 x 3.68 in.
Frequency:150-220 kHz (CHIRP), 1075-1150 kHz (MEGA DI+)
Power Output:4000W (peak to peak), 500W (RMS)
Transducer:XNT 9 HW MDI 75 T
