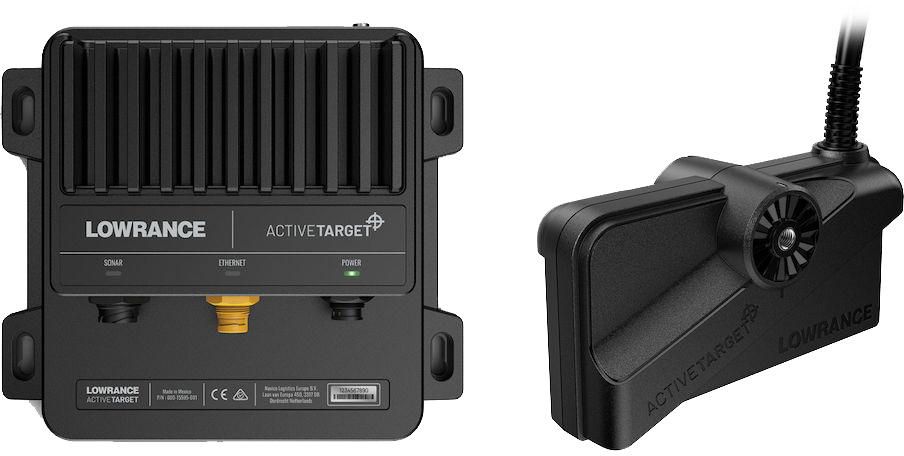

Lowrance ActiveTarget Live Sonar product image
View Full Screen

Lowrance ActiveTarget Live Sonar

$1,499.99
Delivery & Pickup Options

Shipping

Store Pickup

Be the first to know! ScoreCard Gold members get notified first. Details

Product Information


FEATURES:

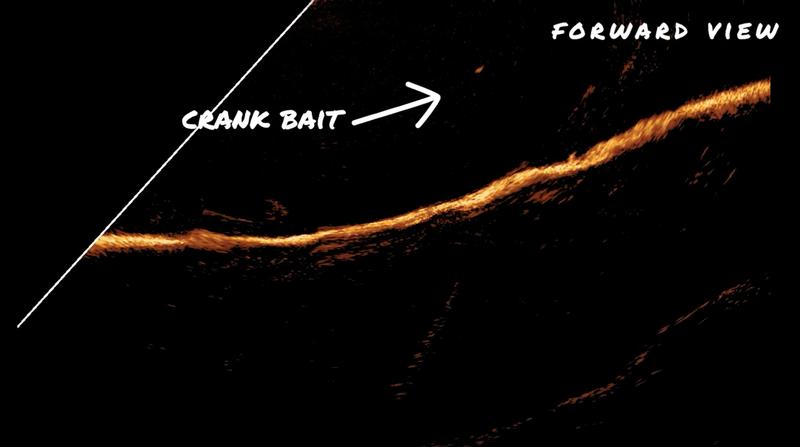

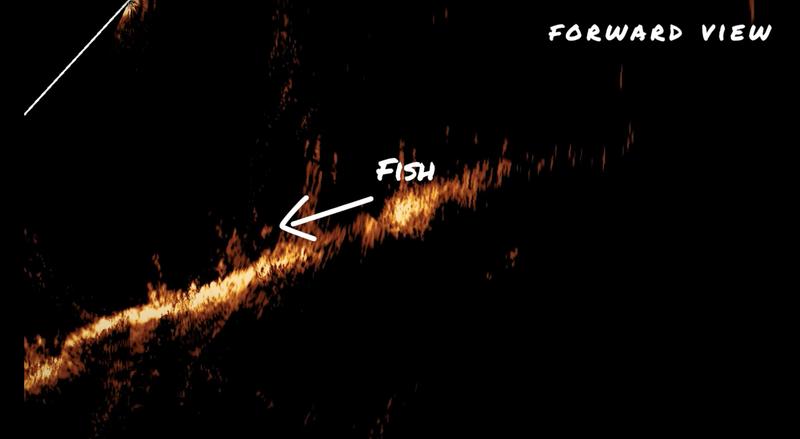

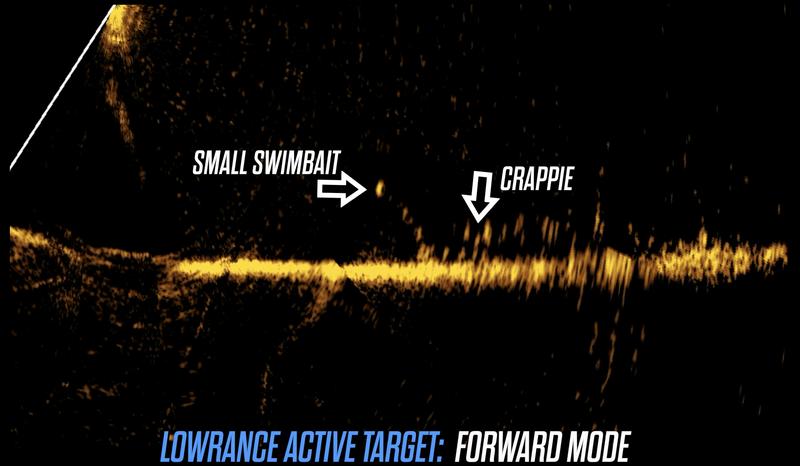

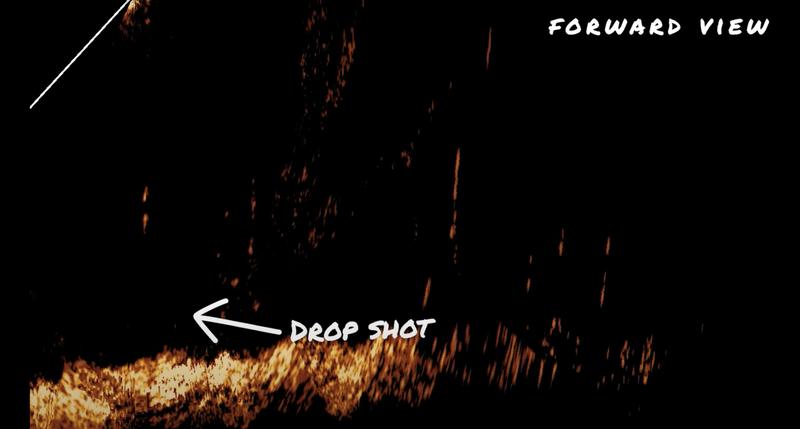

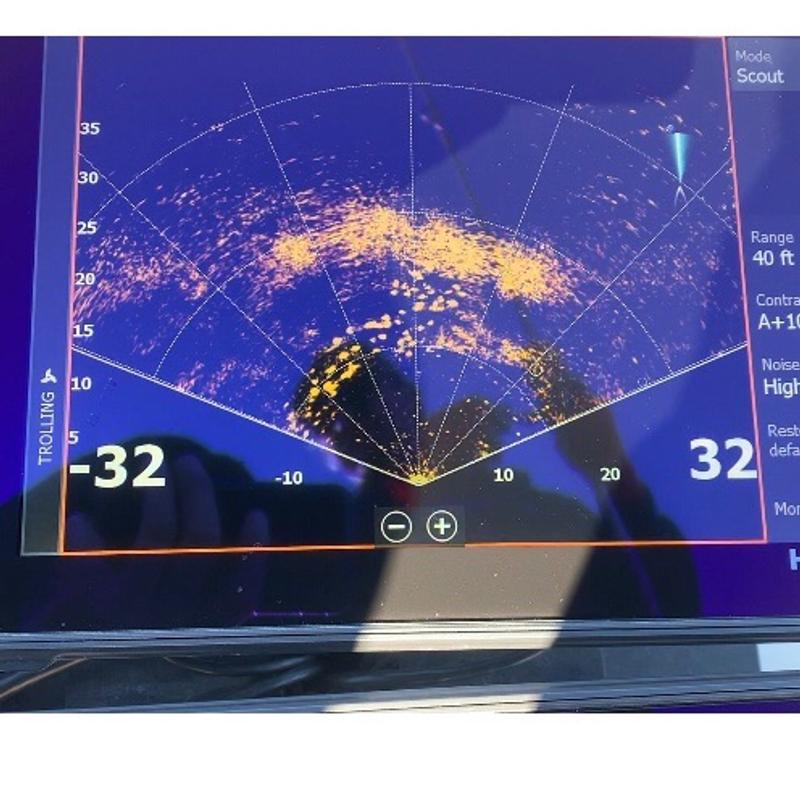

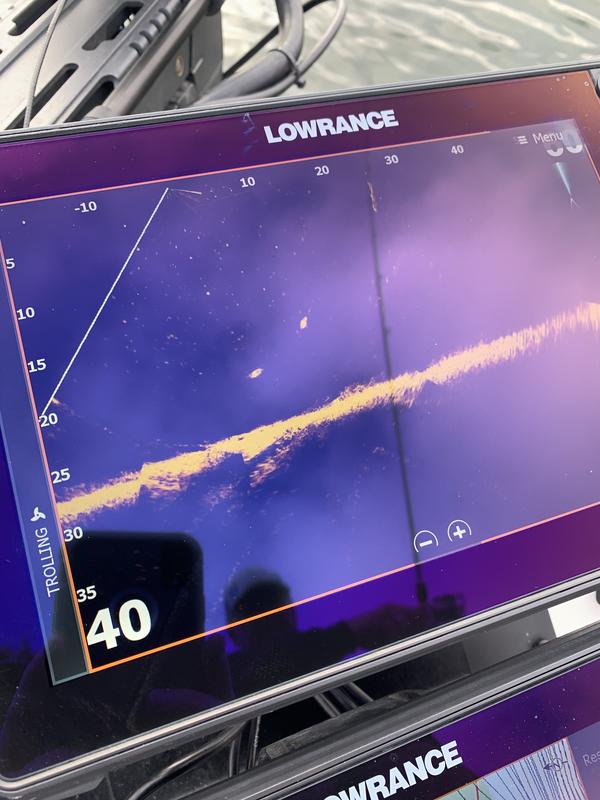

  • Get three views from one transducer: Forward view ahead of your boat, Down view below your boat or Scout view – an ultra-wide, overhead view in front of your boat

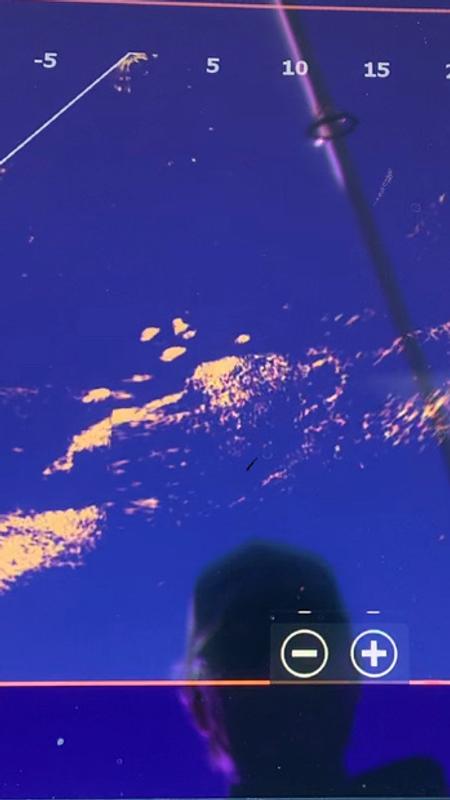

  • See how fish are positioned in and around structure and watch them respond to your lure as it happens
  • High-resolution live images remove the guesswork from sonar interpretation
  • Know whether fish are active
  • Compatible with HDS LIVE, HDS Carbon and Elite FS

SPECS:

  • Warranty Period: 1 Year + 4 additional years ofupgrade options Totaling 5 years
  • Power Consumption max: 1.5A @ 13.8VDC
  • Power Consumption typical: 1.5A @ 13.8VDC Supply Voltage10.8 VDC - 31.2 VDC
  • Shock Vibration: 100,000 cycles of 20 G
  • Storage Temperature Range: -22°F to 158°F (-30°C to 70°C )
  • Recommended Fuse Rating: 3A
  • Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
  • Humidity: 60°C, 95% relative humidity (RH) for 18 hours
  • Interface: Ethernet to:HDS LiveHDS CarbonElite FS
  • Waterproofrating: IP67
  • Weight: Module:4.12 lbs (1.86 kg)Transducer:2.67 lbs (1.21 kg)
  • Dimensions: W x H x DModule:8.63" (219.3mm) x 7.56" (192.1mm) x 2.86" (72.9mm)Transducer:5.90" (149.8mm) x 3.24" (82.4mm) x 2.28" (58.0mm)

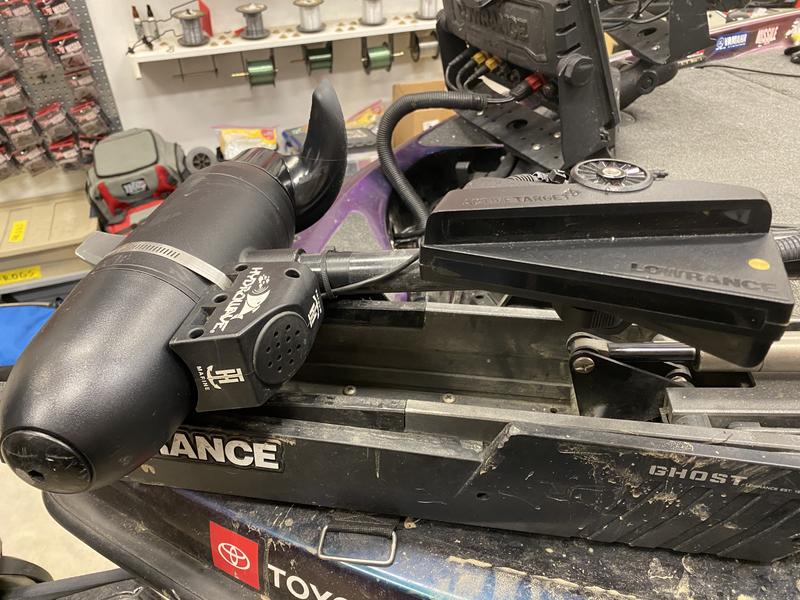

  • Mounting Type: Module:Surface MountTransducer:Bracket Mount
  • Ethernet Ports: Yes
  • Web ID: 21LOWUCTVTRGTLVSNFEL
  • SKU: 22039800
