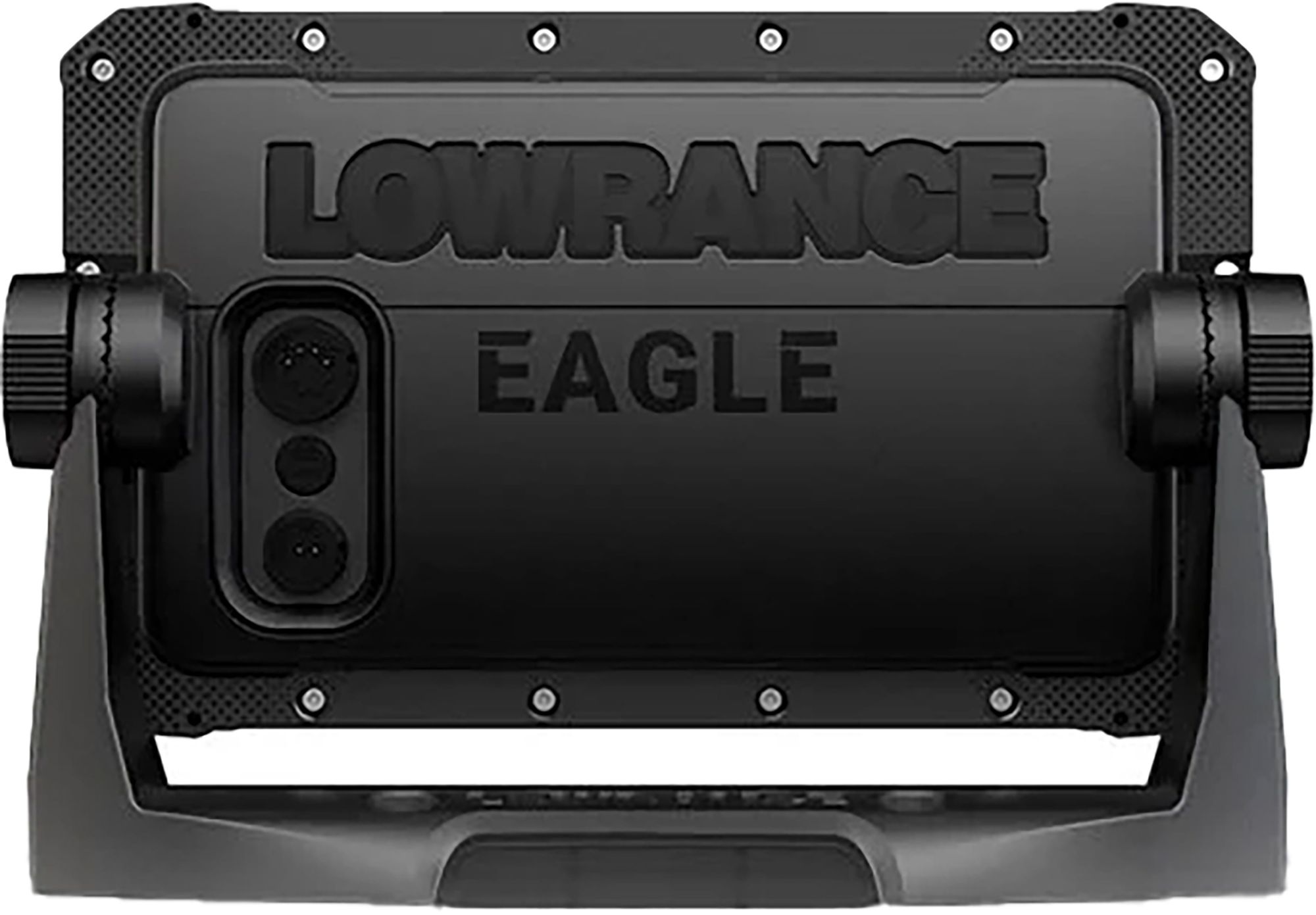

Lowrance Eagle 7 with TripleShot HD Transducer

About This Item

SONAR:

  • CHIRP sonar delivers high-resolution views of individual fish targets, even when targets are close to the bottom or suspended in tight schools
  • DownScan Imaging™ makes it easier to identify how fish relate to structure, providing photo-like images of rocks, trees, and other underwater structures directly beneath your boat
  • SideScan helps search large areas for fish-holding structure. See up to 600ft either side of your vessel, helping you cover more water in a shorter period of time
  • FISHREVEAL™ combines DownScan Imaging™ makes it easier to identify how fish relate to structure, providing photo-like images of rocks, trees, and other underwater structures directly beneath your boat
  • Autotuning sonar provides the optimal settings from the start
  • NAVIGATION:

  • Features high-resolution C-MAP® Embedded inland charts for the US for coverage of over 17,000+ American lakes
  • Create custom ½-foot contour maps of your local lake or uncharted water in real time
  • ADDITIONAL DETAILS:

  • Improved resolution, clarity and visibility, even with polarized sunglasses in direct sunlight
  • Easy set up with Eagle’s improved twist-locking connector, promising an easy installation and removal every time
  • SD Card Slot
  • One-year warranty guarantee
    • Brand : Lowrance
    • Country of Origin : Imported
    • Web ID: 24LOWAGL7TRPLSHTMFEL
    • SKU: 25466391
    Read More
    Backlight ColorPure white LED
    Display Resolution800 x 480
    Display Size7"
    Screen Brightness1000 NITS
    Viewing Angles80° top/bottom, 80° left/right
    SD Card Storage1 slot (microSD® 32 GB maximum)
    Charts supportedC-MAP® DISCOVER™.
    Power Consumption max550 mA @ 12 V DC with backlight on full
    Power Consumption min250 mA @ 12 V DC with backlight off
    Power Consumption typical550 mA @ 12 V DC with backlight on full
    Recommended Fuse Rating3A
    Supply Voltage12v DC (10.8-17VDC)
    WaterproofratingIPX7 with card door closed
    Mounting TypeGimbal bracket or dash mount
    Weight0.67 kg (1.48 lb)
