Frame Sizes: | S, M, L, XL |
---|---|

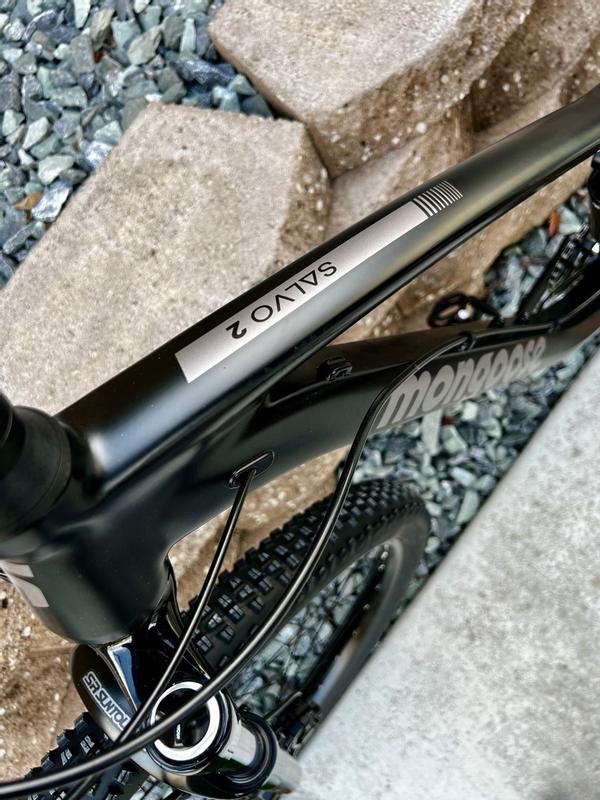

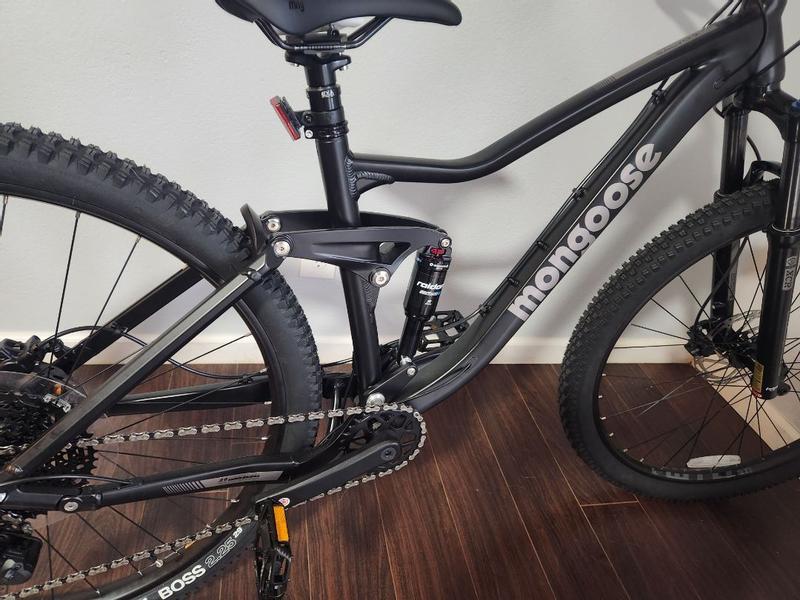

Frame: | Tectonic T2, aluminum, 29" trail geometry, rocker link suspension, internal cable routing, 10 mm x 141 mm dropout, replaceable hanger, tapered headtube, 110 mm travel |
Fork: | SR Suntour XCR 32 Air LO-R, 29", aluminum tapered steerer, hydraulic lockout, rebound adjustment, 15 mm x 110 mm, thru axle, 120 mm travel |
Headset: | Threadless, ZS44 / ZS56, retainer bearing |
Shifters: | Microshift Advent X, 1 x 10 |
---|---|
Rear Derailleur: | Microshift Advent X |
Crankset: | Prowheel C10Y-NW, aluminum, 30T |
Chain: | KMC X10 |
Bottom Bracket: | Feimin FP-B902, sealed cartridge, square taper, threaded 68 mm shell |
Cog Set: | Microshift, 10-speed, 11-48T |
Brakeset: | Tektro HD-M280, hydraulic disc, aluminum, 180 mm front, 160 mm rear rotor |
---|---|
Brake Levers: | Tektro>HD-M275 |
Spokes: | 14G, stainless steel |
---|---|
Rims: | WTB ST-i30, aluminum double wall, 30 mm ID, 32H, tubeless compatible |
Tires: | WTB Trail Boss, 29 in x 2.4 in, wire bead |
Front Hub: | Formula DC511, aluminum, ball bearing, 15 mm x 110 mm, 32H, 6-bolt |
Rear Hub: | Formula DC2241, aluminum, ball bearing, 10 mm x 141 mm QR, 32H, 6-bolt |
Handlebar: | Xposure, double-butted aluminum, 760 mm width, 15 mm rise, 31.8 mm clamp |
---|---|
Stem: | Xposure 3D forged aluminum, threadless, 45 mm, 7°, 31.8 mm clamp |
Grips: | Xposure, lock-on |

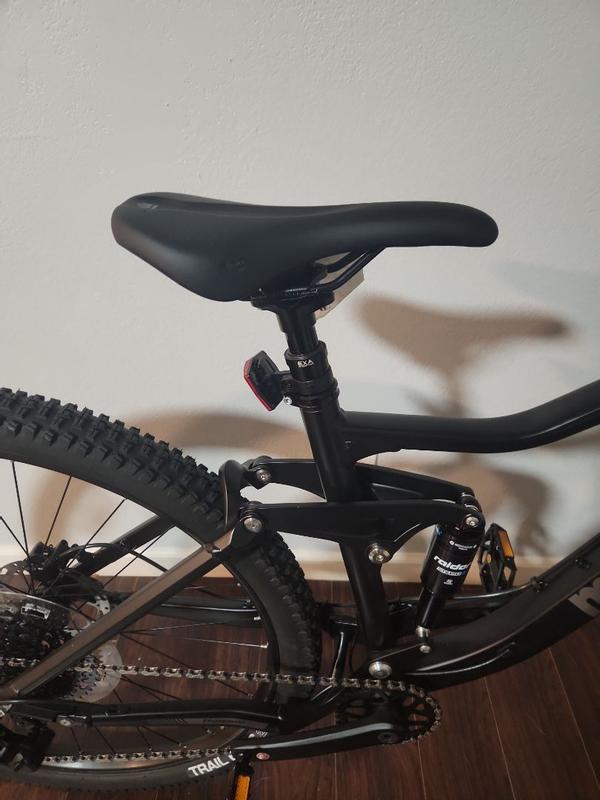

Seat Post: | KS Exaform KSP900-I, aluminum, 445 mm, 15 mm offset, 125 mm travel, internal with remote, 31.6 mm |
Saddle: | Mongoose MTB, steel rails |
Pedals: | Mongoose, aluminum |
