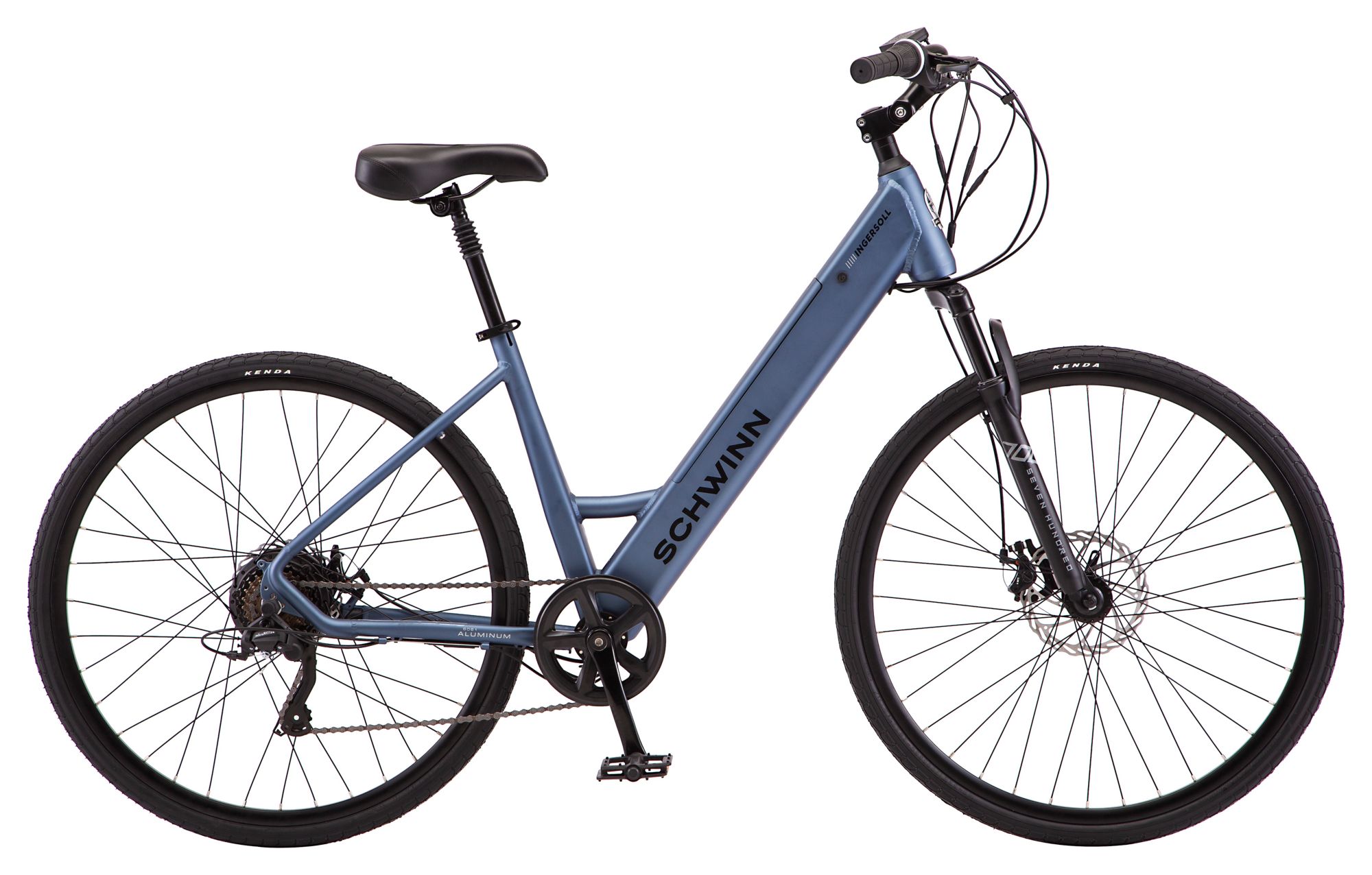

Schwinn 700c Ingersol Electric Road Bike

Color: Slate
Frame Size: M
  • 250-watt pedal assist motor
  • 7-speed
  • Step-through frame
to see availability.
Unused bikes are eligible for return up to 24 hours after in store purchase, pick-up, or home delivery. Policy Details
Shipping Information
Shipping Restrictions May Apply.
Oversized Shipping Charges Apply.

Product Information

Manufacturer may substitute components with components of equal or greater performance level


  • Pedal assist motor with 250-watt hour battery grants you the ability to take on hills and long rides with ease
  • Battery range: 45 miles with a battery recharge time of 3 hours

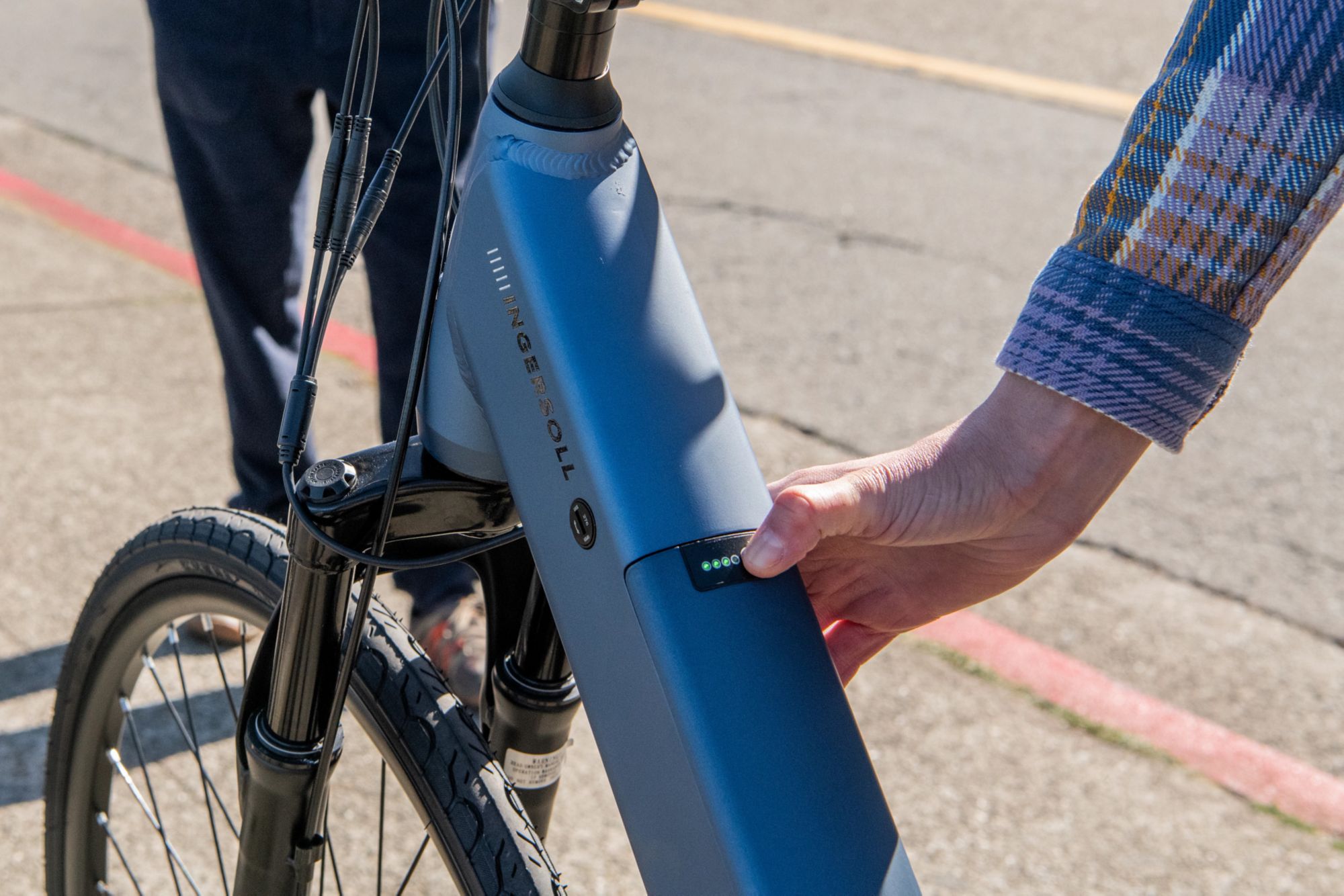

  • 280Wh Battery integrated into downtube helps grant a lower center of gravity for enhanced stability

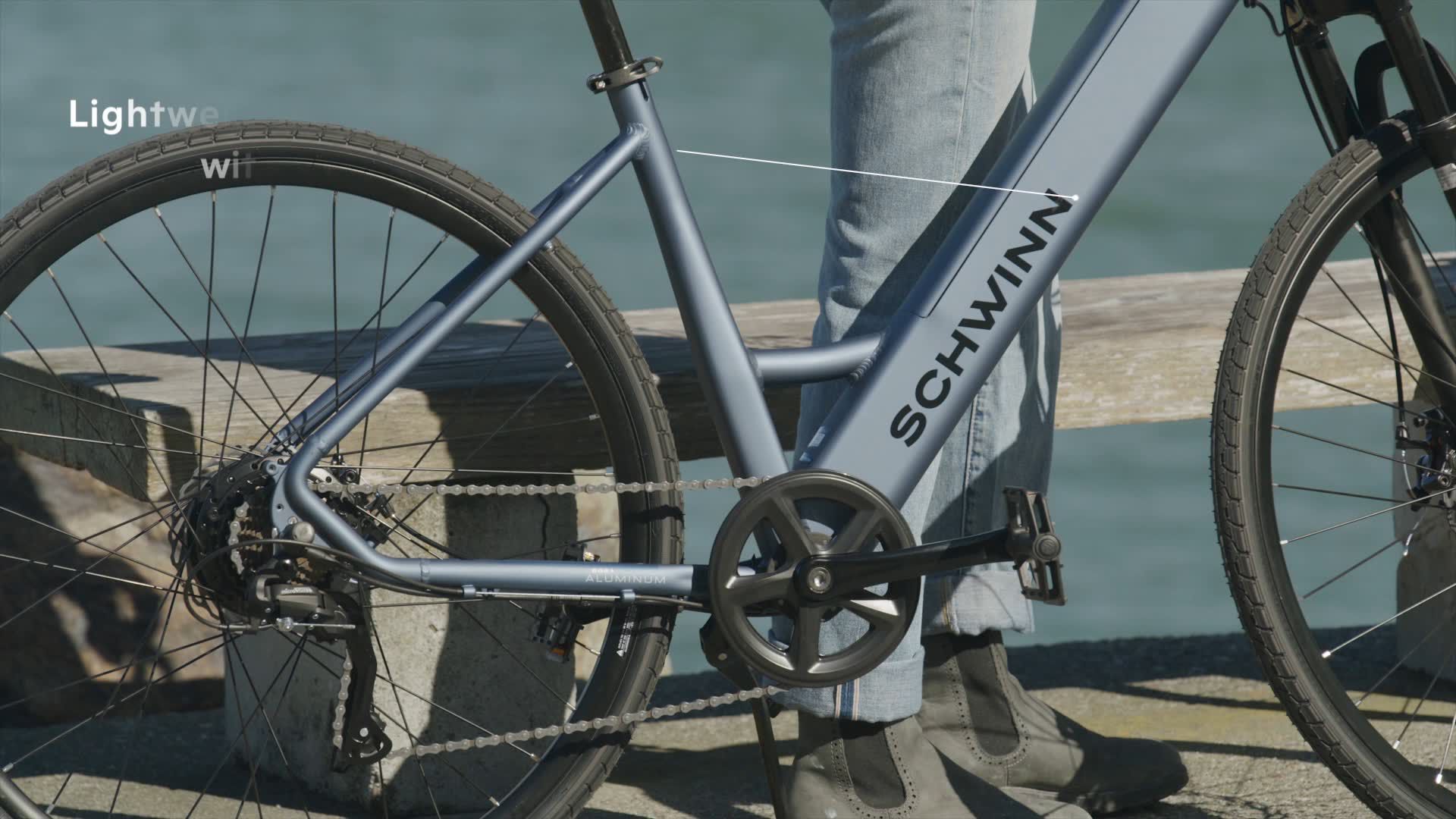

  • Lightweight and durable 6061 aluminum frame
  • Low step through design makes it easy to get on and off your bike

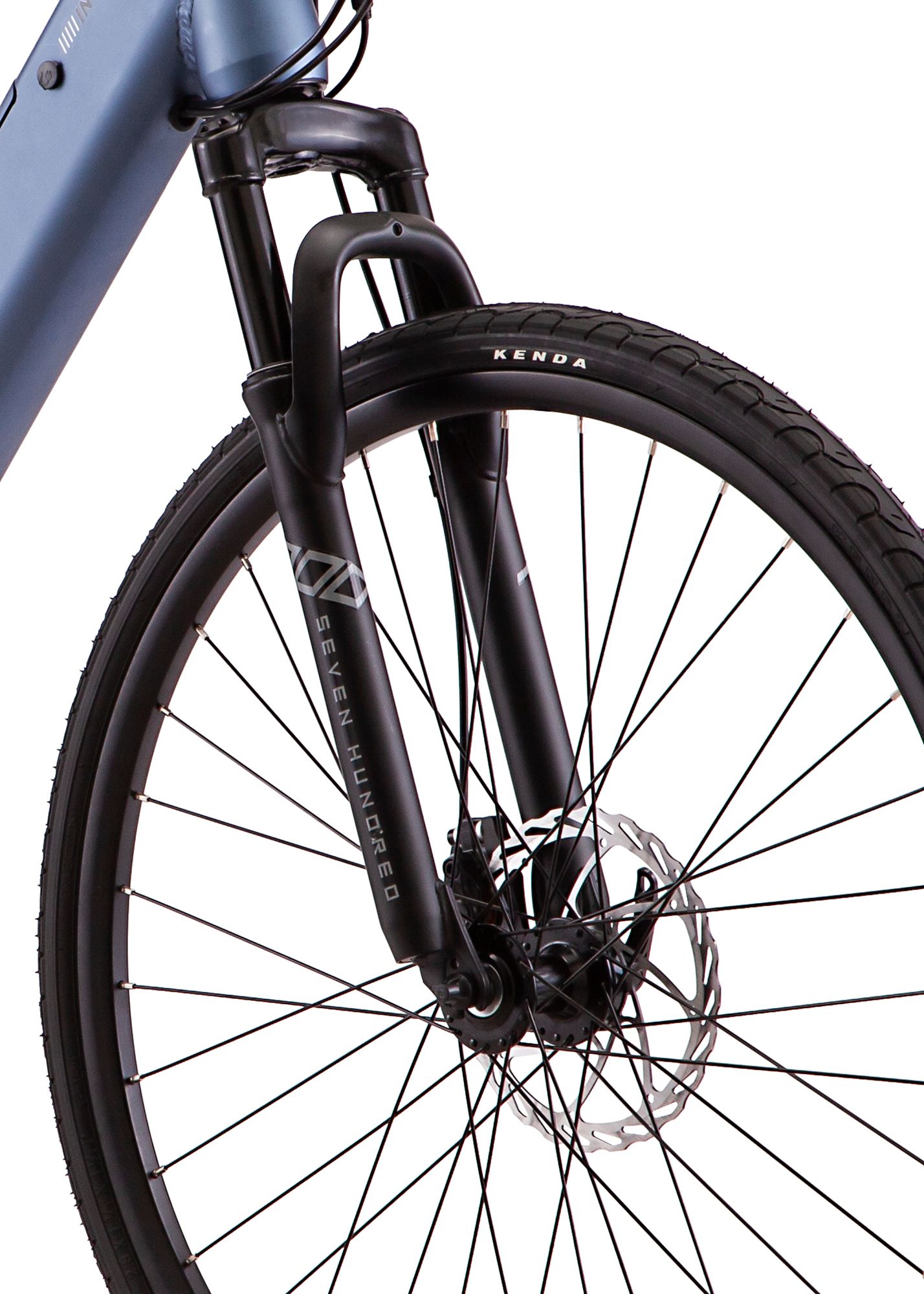

  • Suspension fork and seat post provide a smooth and comfortable experience
  • Mechanical disc brakes deliver precision stopping power
  • Made with a 7-speed drivetrain allows you to adapt to your terrain
  • Adjustable rise stem with mustache style handlebar keeps you dialed in perfect riding position
  • 700c wheels fits best riders between 5’3” – 5’11”
  • Bike Weight: 49.5 lbs.
  • All Schwinn® e-bike batteries are lab tested to comply with UL standards

NOTICE: Used Bikes and/or bikes purchased online that have been assembled are non-returnable. We strongly recommend that a professional bicycle mechanic properly assembles, repairs, and maintains the bicycle. DICK'S Sporting Goods will provide free in-store assembly service by a certified technician for any bicycle purchased on our website or in our stores (proof of purchase required). If you choose to assemble the bicycle yourself, DICK'S Sporting Goods is not responsible for injuries or damages resulting from improper assembly.

  • Country of Origin : Imported
  • Style : S7533DSG
  • DSG Pro Tips
  • Brand : Schwinn
  • SKU: 21748362


Frame Size:18"
Wheel Size:700c
Frame:Schwinn Step Through Hybrid 6061 aluminum, DT mounted battery, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8” headtube
Crank:3-piece alloy
Bottom Bracket:Cartridge, cartridge, square taper, 68mm

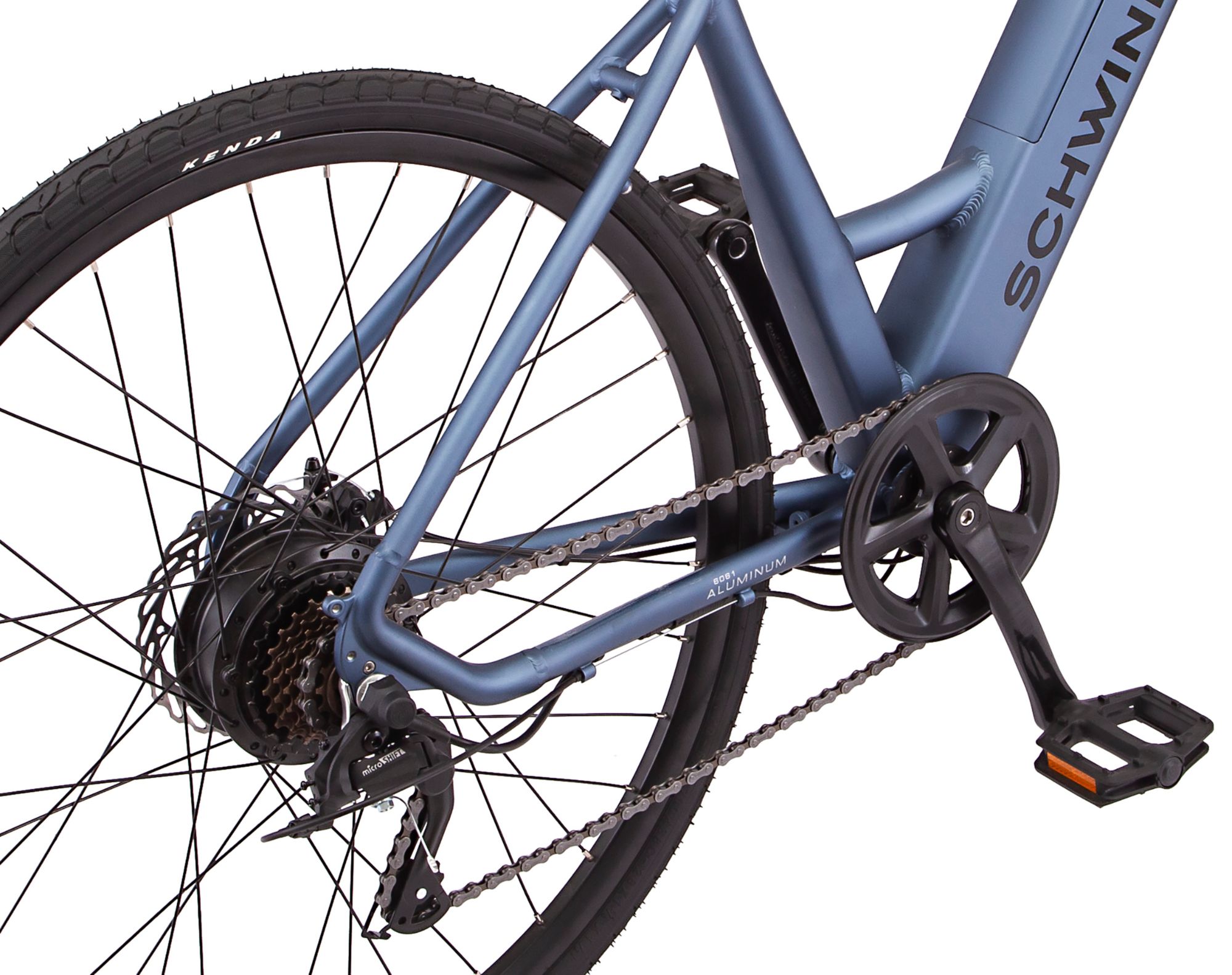

Rear Derailleur:7-speed gearing
Cog Set:7-speed, 14-28T
Shifters:Twist shifters, 7-speed
Front Hub:Aluminum, ball bearing, 100 mm bolt-on, 36H, 6-bolt
Rear Hub:Aluminum, ball bearing, 10 mm x 135 mm QR, 36H, 6-bolt
Rims:Aluminum, double wall, 19.4 mm ID, 36H, non tubeless
Front Tire:Kenda 700c x 38c wire bead
Rear Tire:Kenda 700 x 38c wire bead
Brakes:Mechanical disc, aluminum, 180 mm front, 160 mm rear rotor
Brake Levers:aluminum

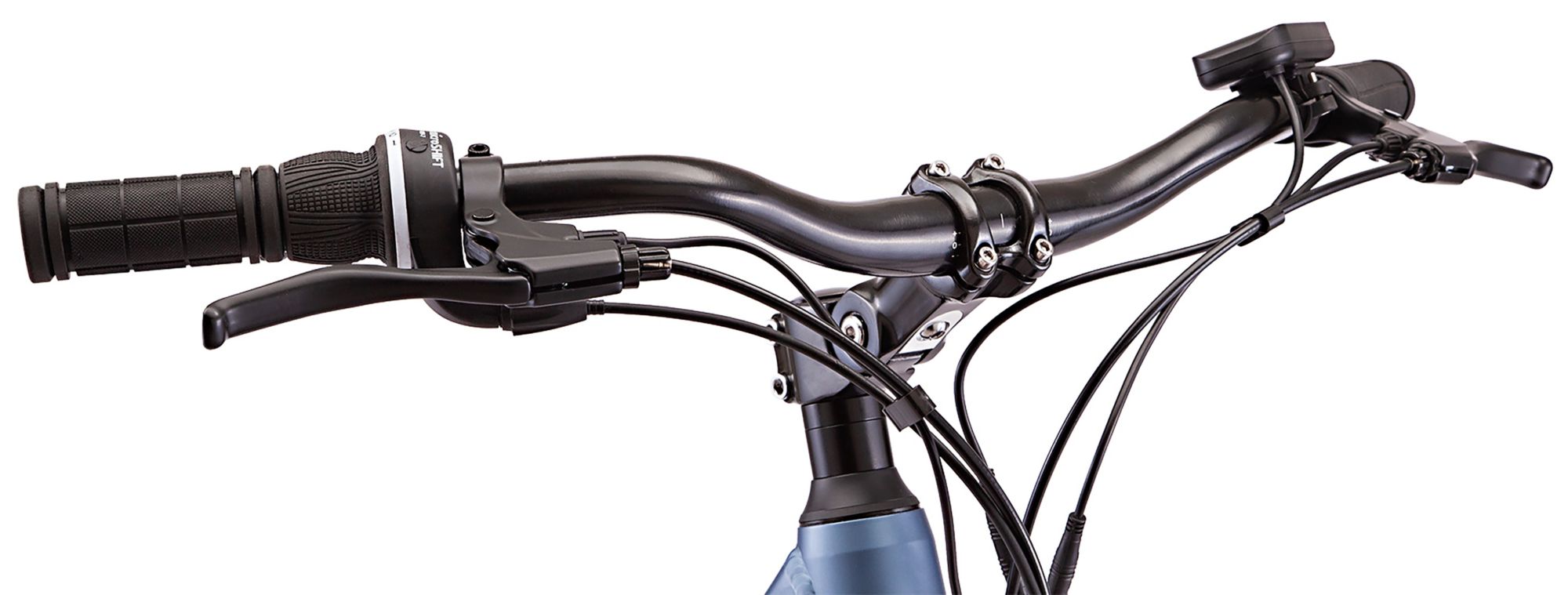

Handlebar:Schwinn, aluminum, 660 mm width, 30 mm rise, 31.8 mm clamp
Grips:130 mm
Stem:Aluminum, threadless front load, adjustable rise 31.8 mm clamp adjustable alloy

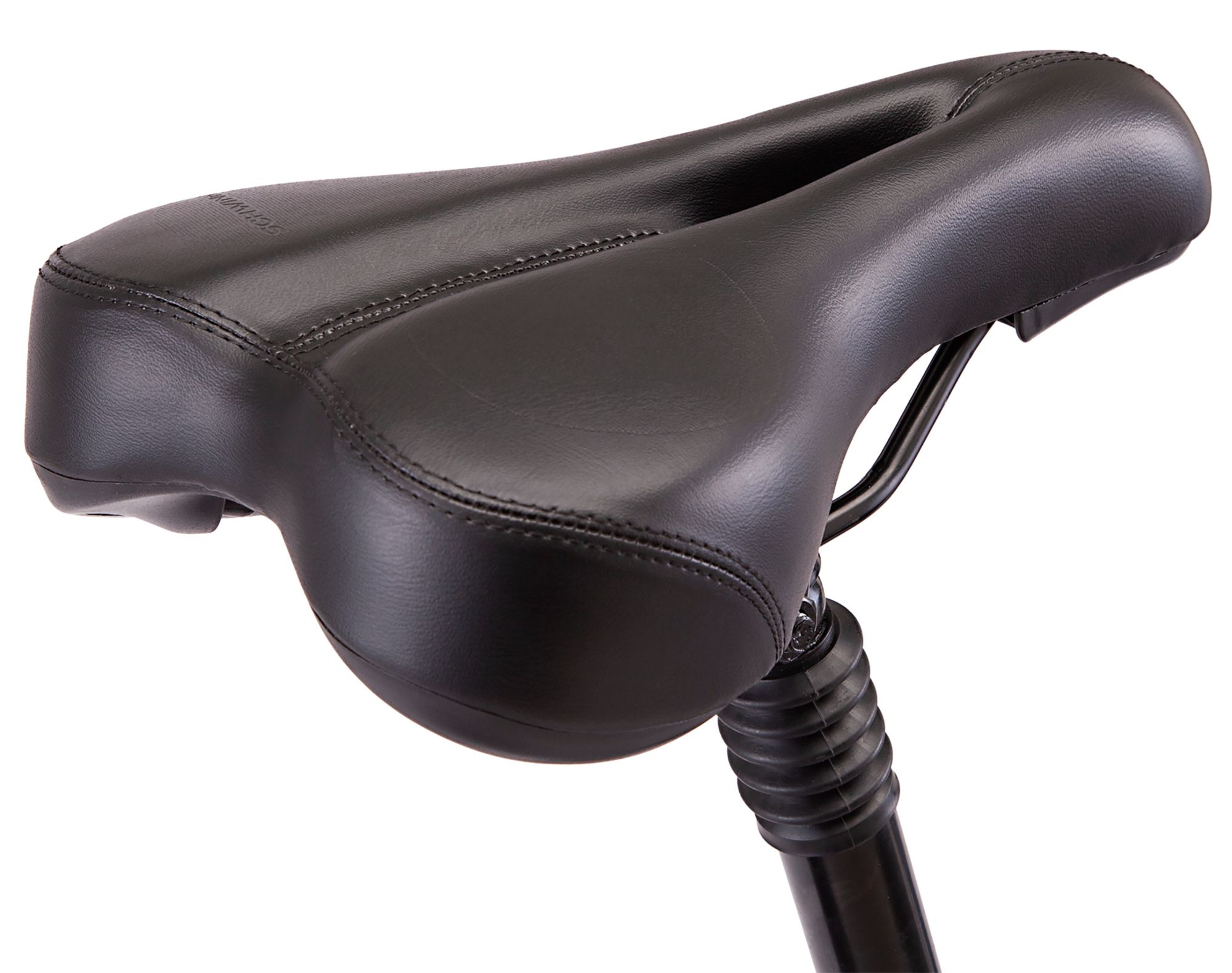

Saddle:Schwinn, steel rails vinyl comfort
Seatpost:Steel 300 mm 20 mm offset suspension
Battery Type:Lithium Ion
Motor Torque:40Nm

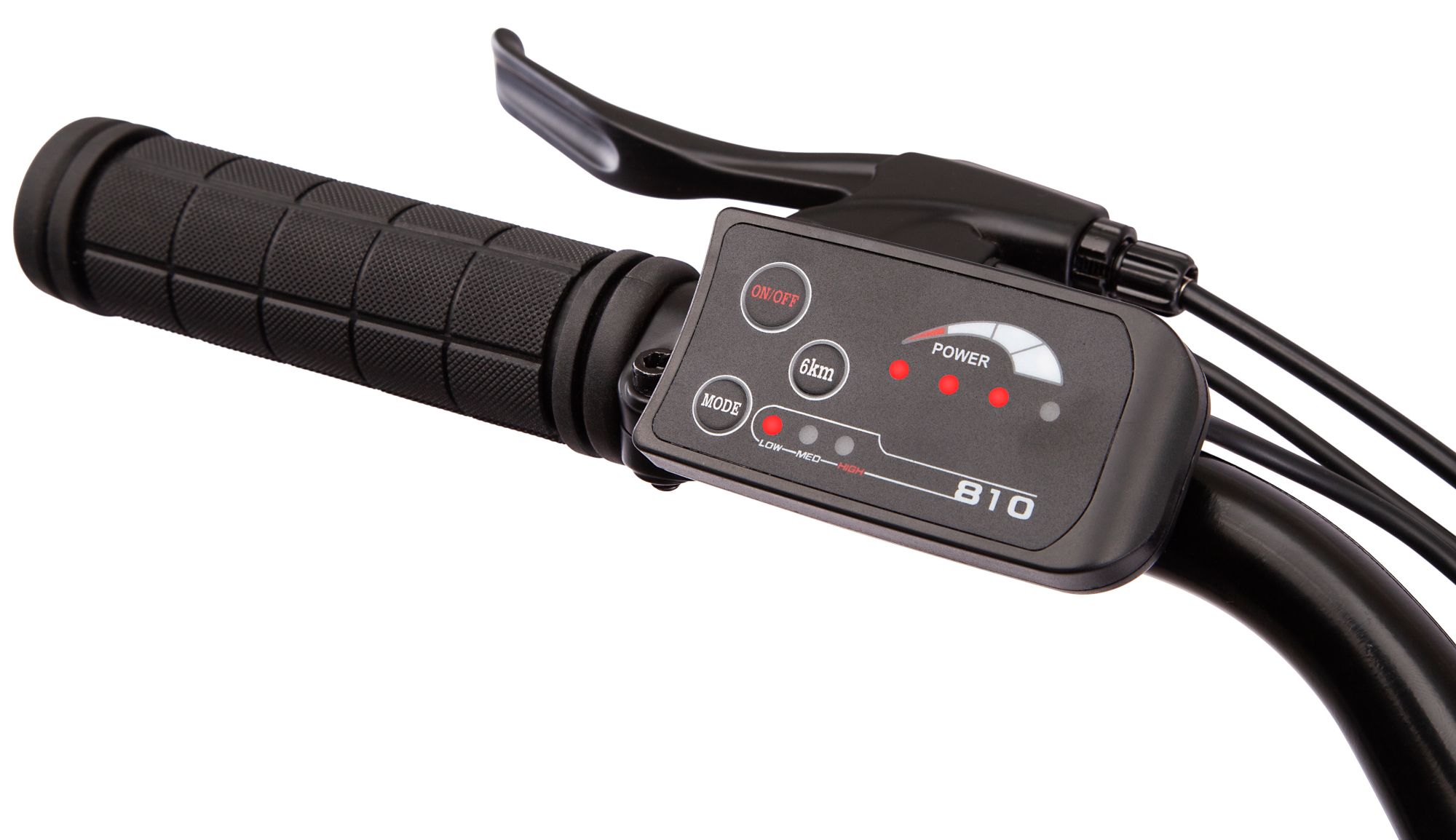

Display Type:LCD
Motor Wattage:280
