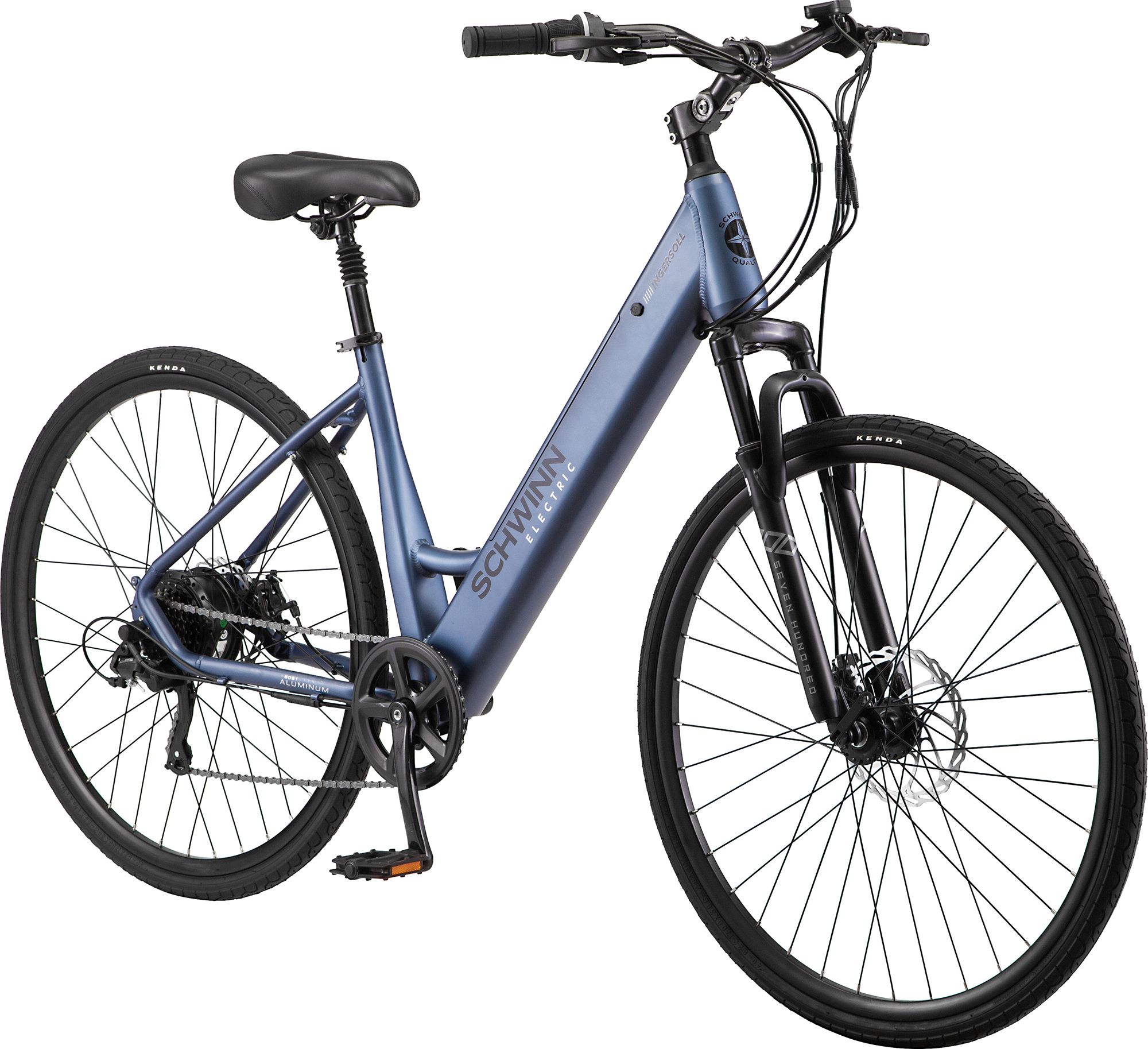

Schwinn Adult 700c Ingersoll Electric Hybrid Throttle Bike

About This Item

Manufacturer may substitute components with components of equal or greater performance level

TECHNOLOGY:

  • Pedal assist hub motor with 250-watt hour battery grants you the ability to take on hills and long rides with ease

FEATURES:

  • Strong aluminum frame construction with formed top tube design provides plenty of clearance
  • Ideal for neighborhoods and bike paths
  • Suspension fork and seatpost provides a smooth and comfortable experience
  • Pedal assist can travel up to 20 mph

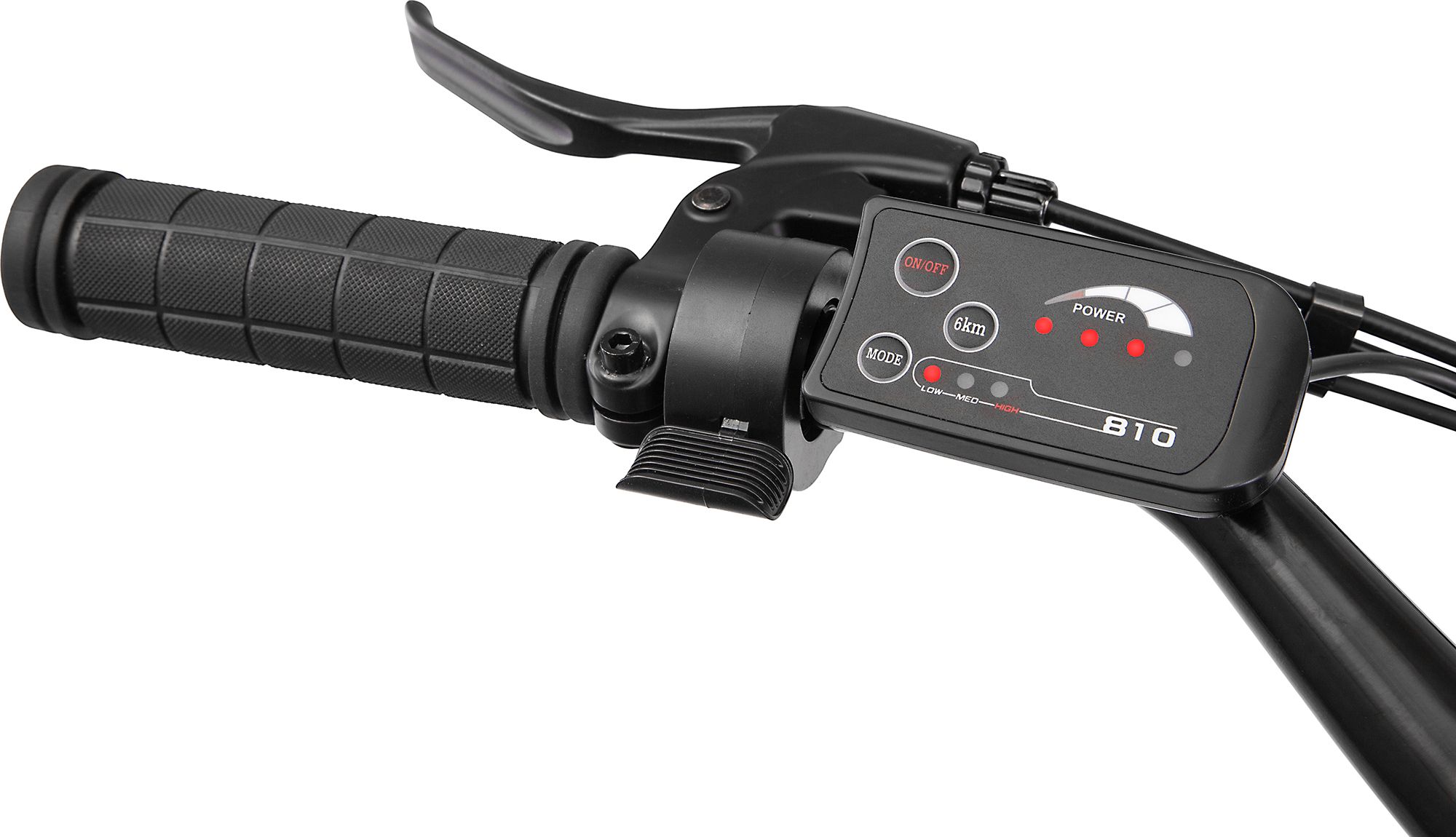

  • Throttle can accelerate the bike without using the pedals
  • Mechanical disc brakes deliver precision stopping power
  • Made with a 7-speed drivetrain that allows you to adapt to your terrain
  • Adjustable rise stem with mustache style handlebar keeps you dialed in perfect riding position

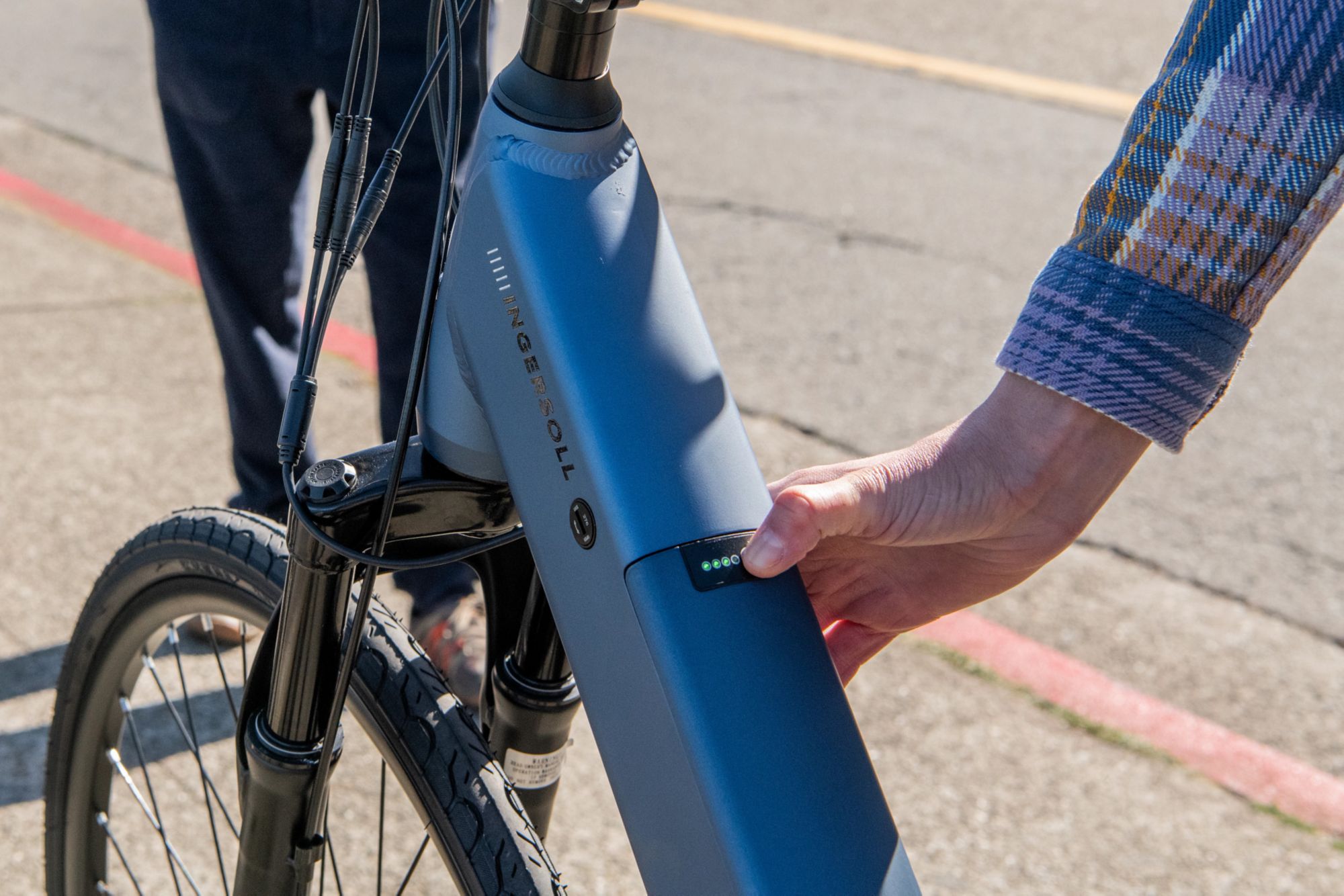

  • 250Wh Battery integrated into downtube helps grant a lower center of gravity for enhanced stability
  • Battery lasts for approximately 45 miles on a single charge and recharges in 4 hours with a standard household outlet and included charging cable
  • 700c wheels fits best riders between 5’4” – 5’8”
  • Like all Schwinn® e-bikes, the Ingersoll includes a 2-year warranty on the battery and electric assist parts, and a lifetime warranty on the frame and fork
  • All Schwinn® e-bike batteries are lab tested to comply with UL standards
  • SGS certified to ANSI/CAN/UL2849




NOTICE: Used Bikes and/or bikes purchased online that have been assembled are non-returnable. We strongly recommend that a professional bicycle mechanic properly assembles, repairs, and maintains the bicycle. Public Lands will provide free in-store assembly service by a certified technician for any bicycle purchased on our website or in our stores (proof of purchase required). If you choose to assemble the bicycle yourself, Public Lands is not responsible for injuries or damages resulting from improper assembly.


  • Brand : Schwinn
  • Country of Origin : Imported
  • Style : S7577T
  • DSG Pro Tips
  • Web ID: 22SCWU700CNGRSLBKBIK
  • SKU: 23269114

Electrical Components:

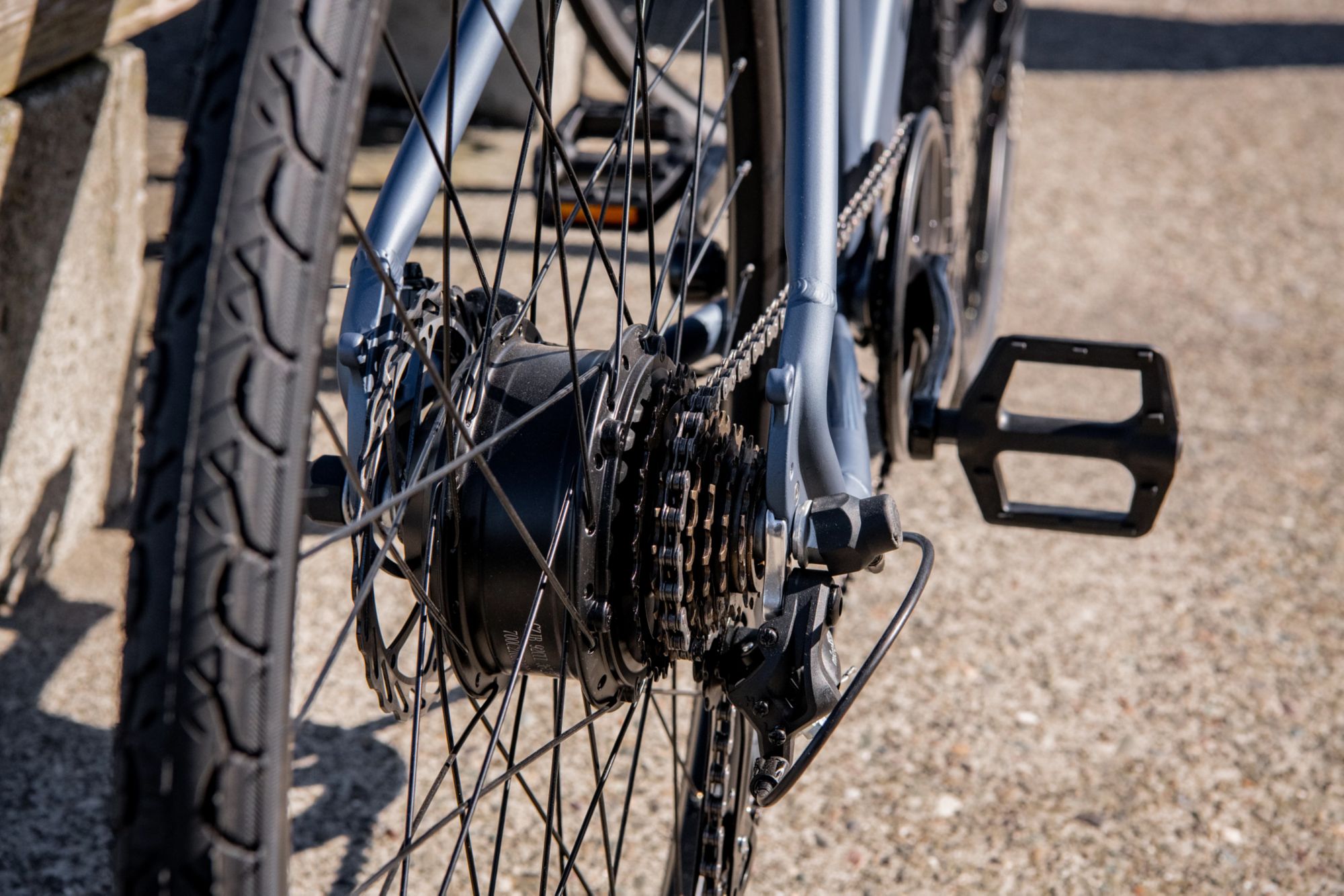

E-System Drive Unit: 250W Hub
E-System Battery: Lithium Ion

Frameset:

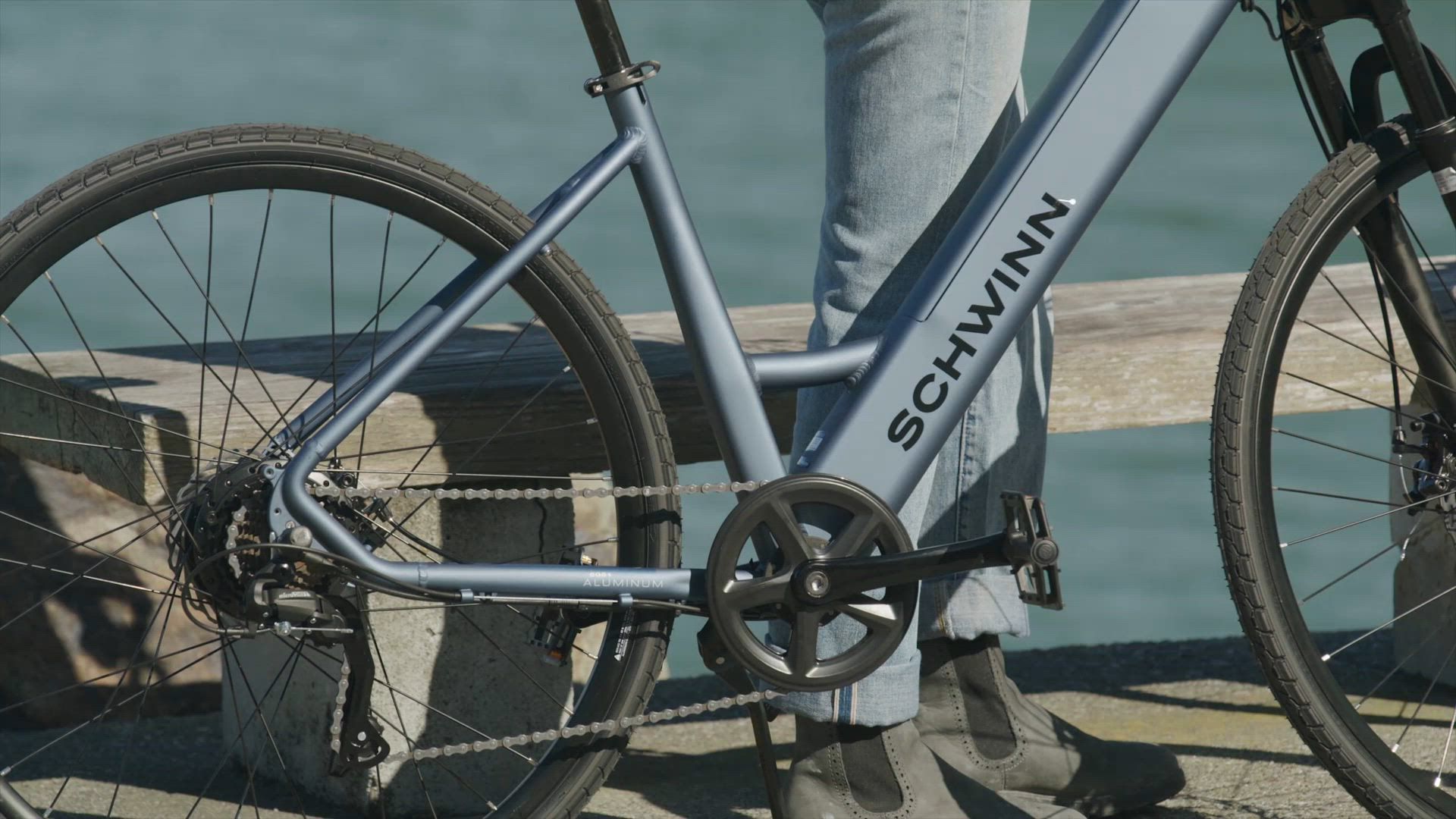

Frame: 6061 aluminum, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Fork: Schwinn, 700c, steel steerer, 80 mm QR
Headset: Threadless, retainer bearing

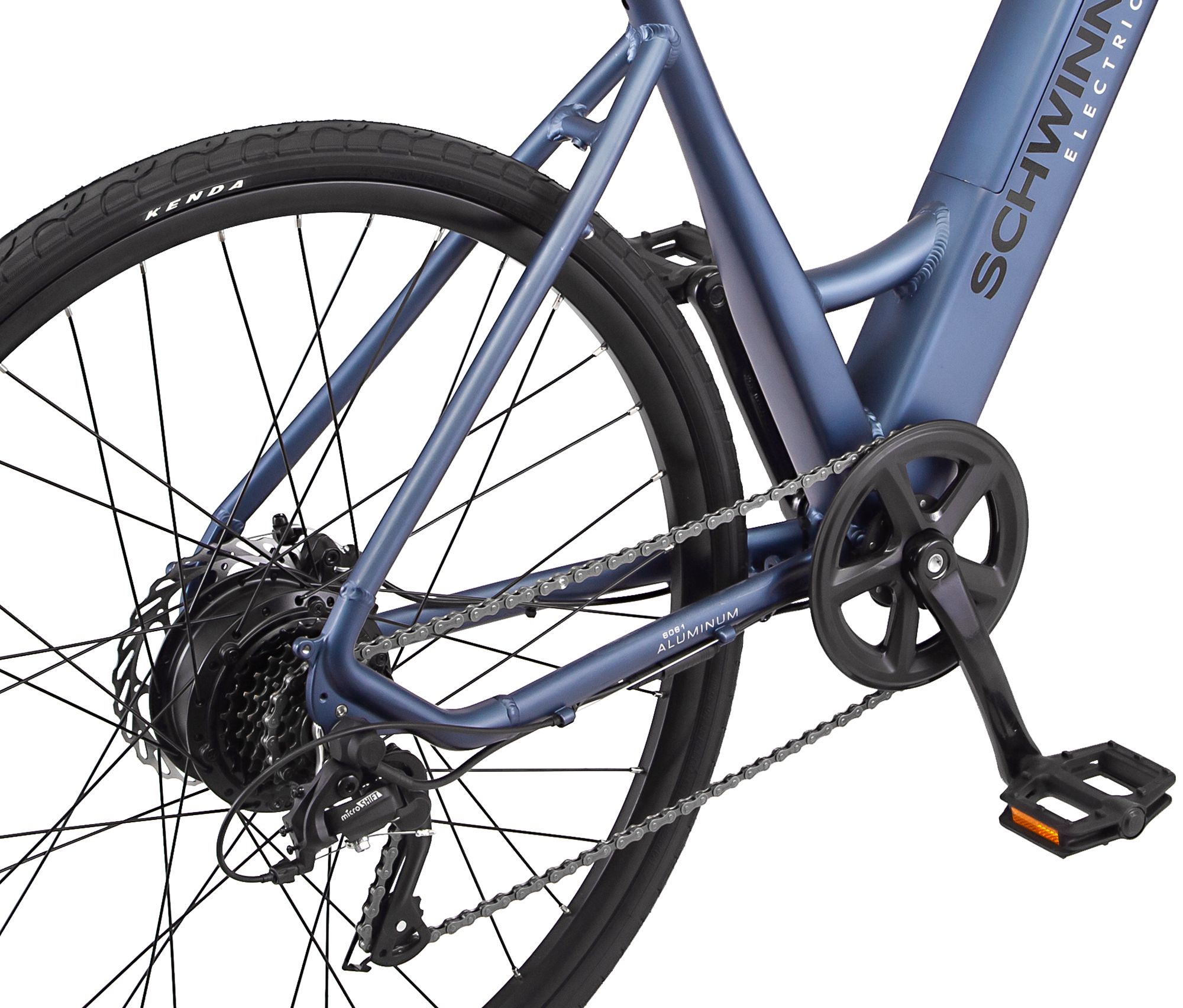

Drivetrain:

Crankset: Aluminum 170 mm, 42T
Front Derailleur: MicroSHIFT
Rear Derailleur: Microshift
Bottom Bracket: Cartridge, square taper, 68mm
Cog Set: 7-speed, 14-28T

Brakes:

Brakeset: Mechanical disc, aluminum, 180 mm front, 160 mm rear rotor
Brake Levers: Microshift

Wheels:

Spokes: 14G/13G, stainless steel, black
Rims: Aluminum, aluminum double wall, 20 mm ID, 36H, non tubeless
Tires: Kenda, 700c x 35c, wire bead
Front Hub: Aluminum, ball bearing, 100 mm QR, 32H, 6-bolt
Rear Hub: Aluminum, ball bearing

Components:

Handlebar: Aluminum, 660 mm width, 20 mm rise, 31.8 mm clamp
Stem: Aluminum, threadless front load, 100 mm, adjustable rise, 31.8 mm clamp
Grips: Semi-ergo

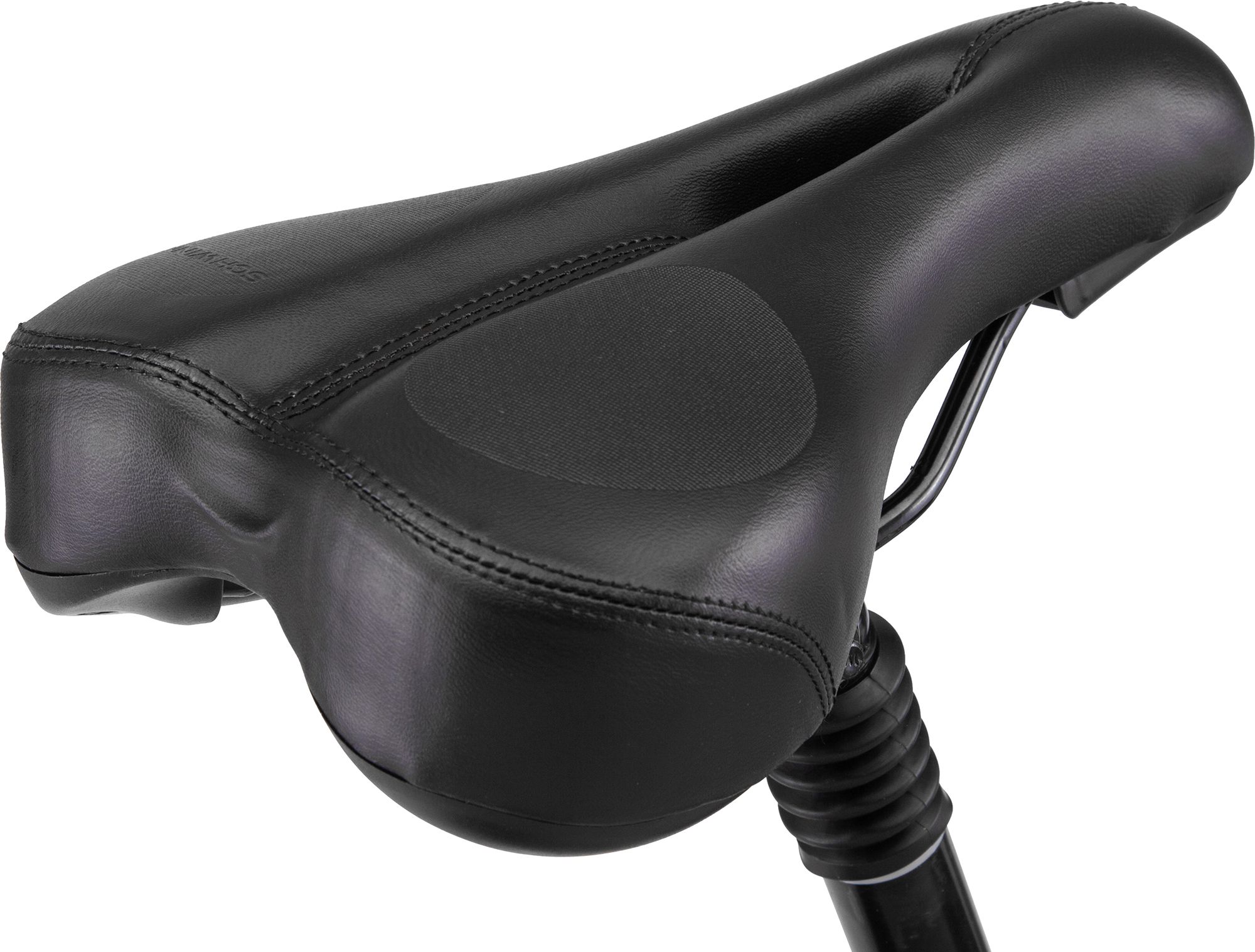

Seat Post: Steel, 300 mm, 27.2 mm
Pedals: Steel platform
