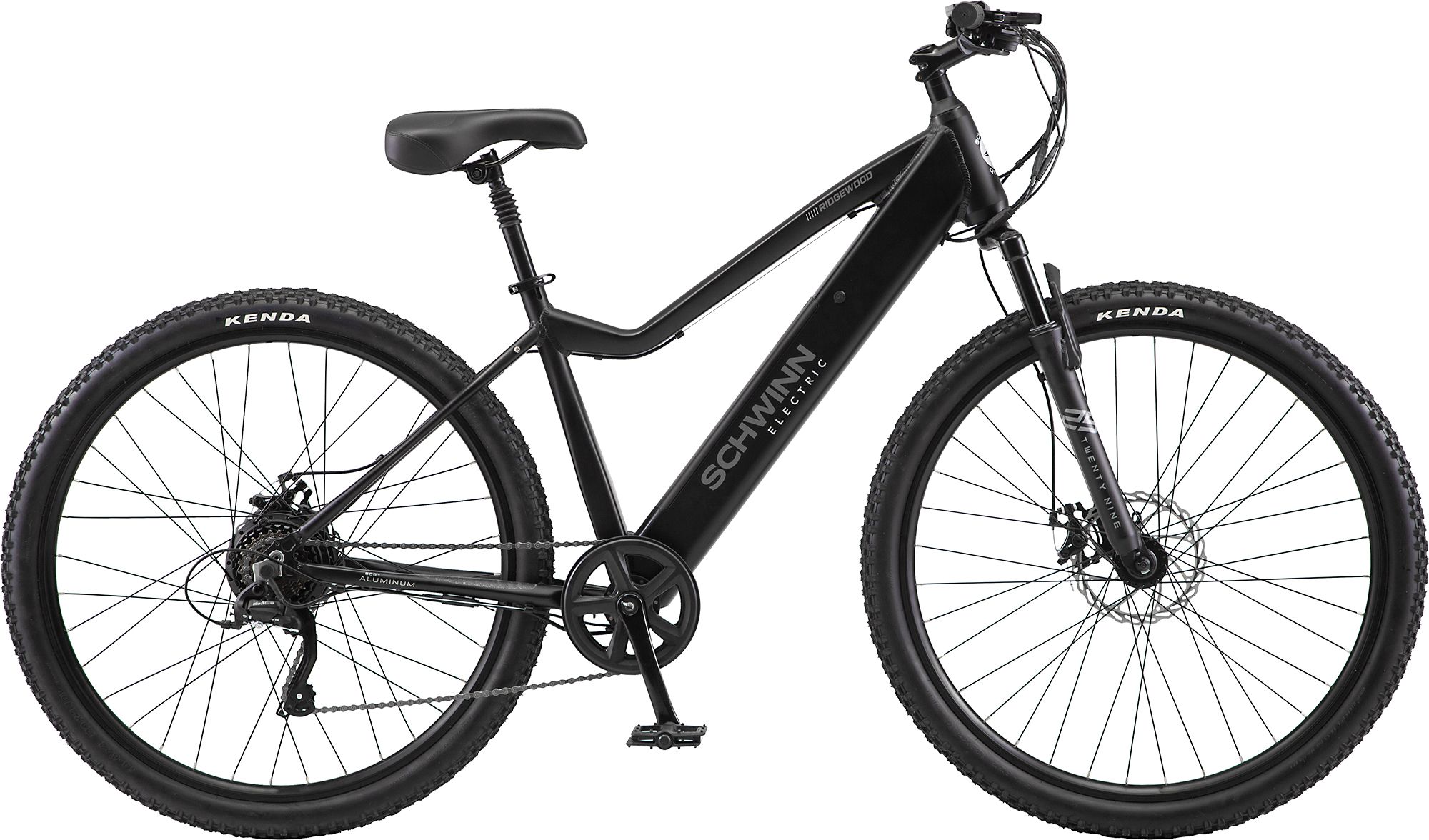

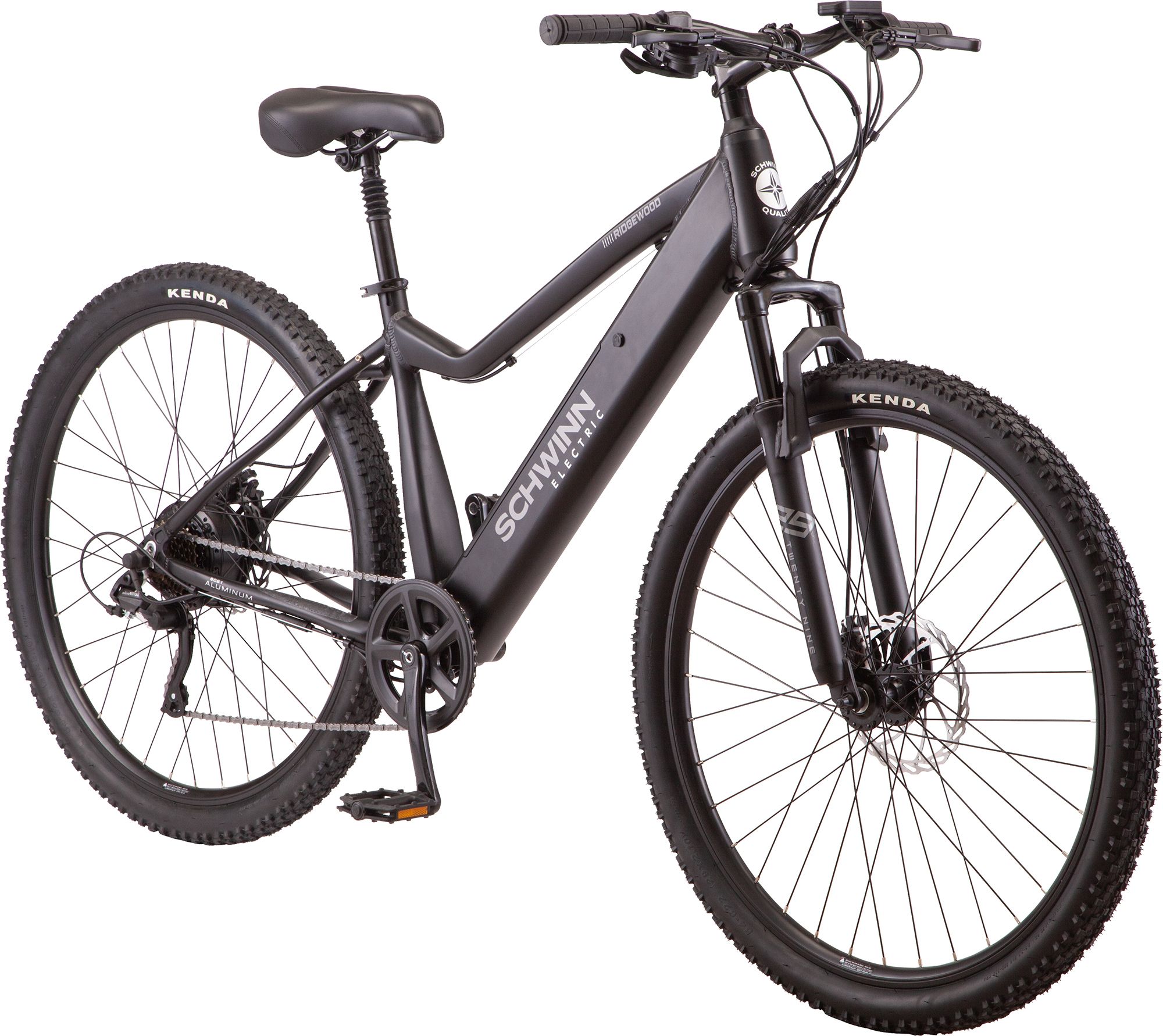

Schwinn Men's Ridgewood 29" Electric Mountain Throttle Bike

About This Item

Manufacturer may substitute components with components of equal or greater performance level

TECHNOLOGY:

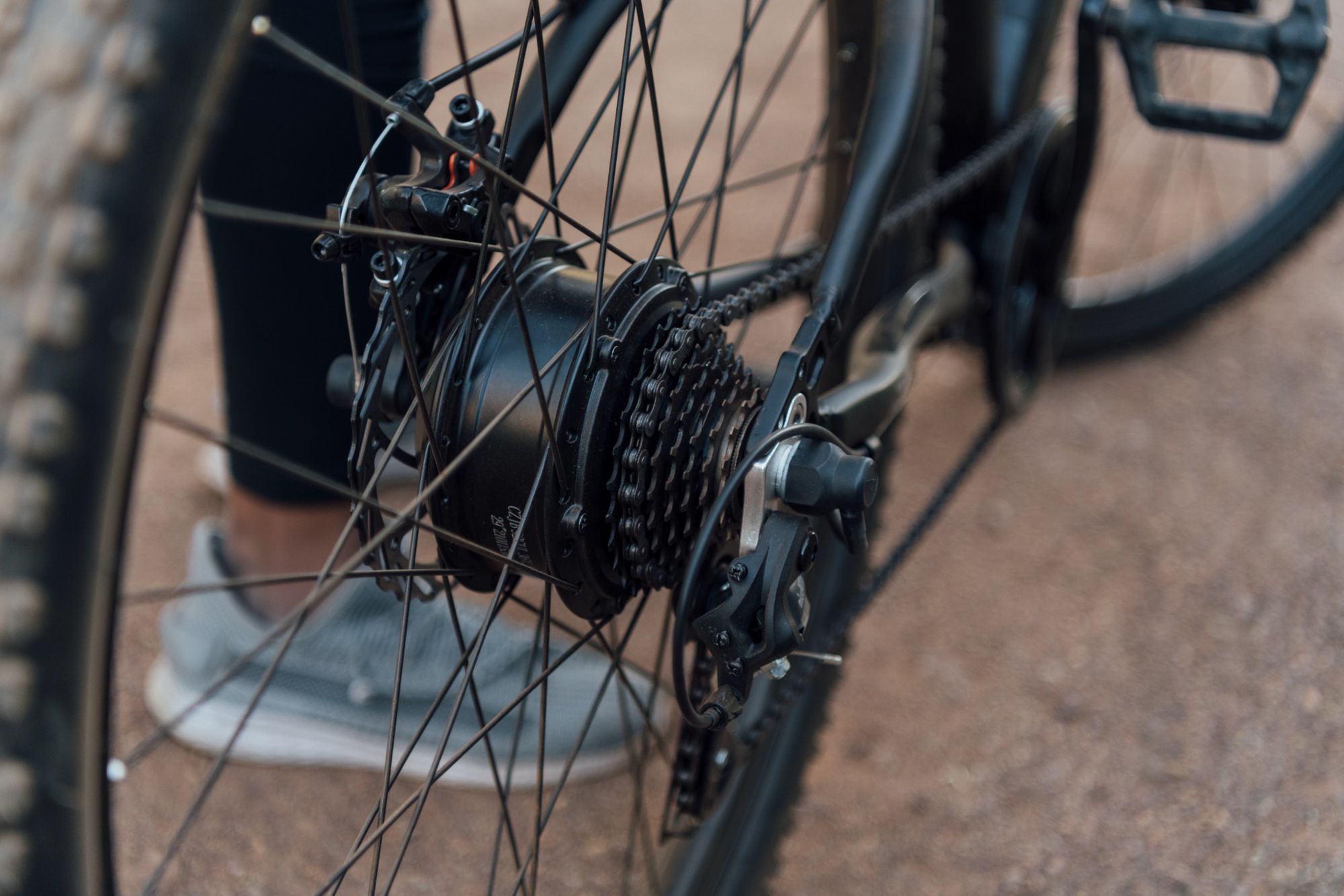

  • Pedal assist hub motor with 250-watt hour battery grants you the ability to take on hills and long rides with ease
  • Pedal assist can travel up to 20 mph
  • Throttle can accelerate the bike without using the pedals
  • 250Wh Battery integrated into downtube helps grant a lower center of gravity for enhanced stability
  • Battery lasts for approximately 45 miles on a single charge and recharges in 4 hours with a standard household outlet and included charging cable

FEATURES:

  • Strong aluminum frame construction with formed top tube design provides plenty of clearance
  • Ideal for cruising around the neighborhood and exploring new bike paths

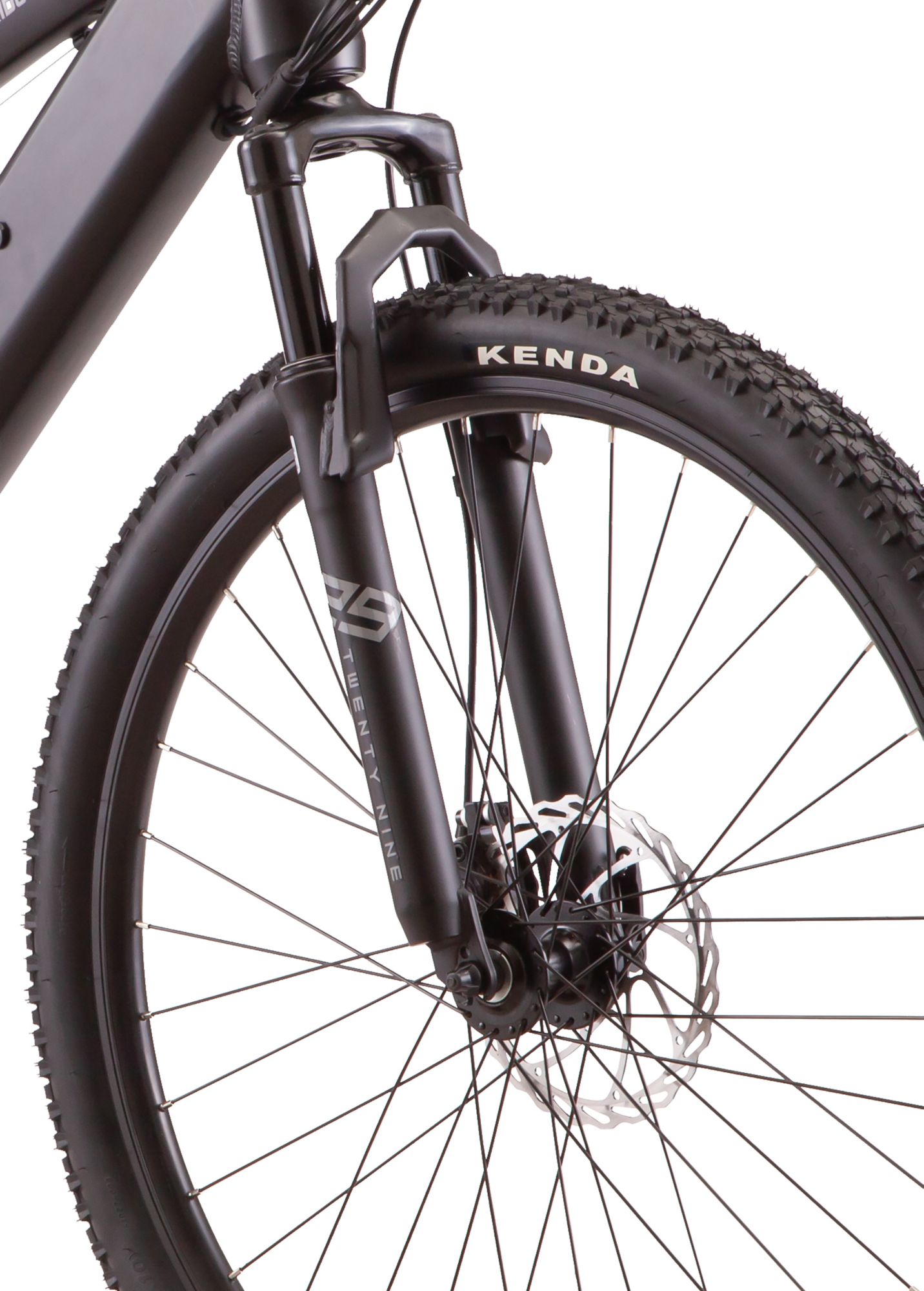

  • Oversized suspension fork provides a smooth and comfortable experience
  • Mechanical disc brakes deliver precision stopping power
  • Alloy oversized handlebar and stem increase strength and improve the steering input of the rider

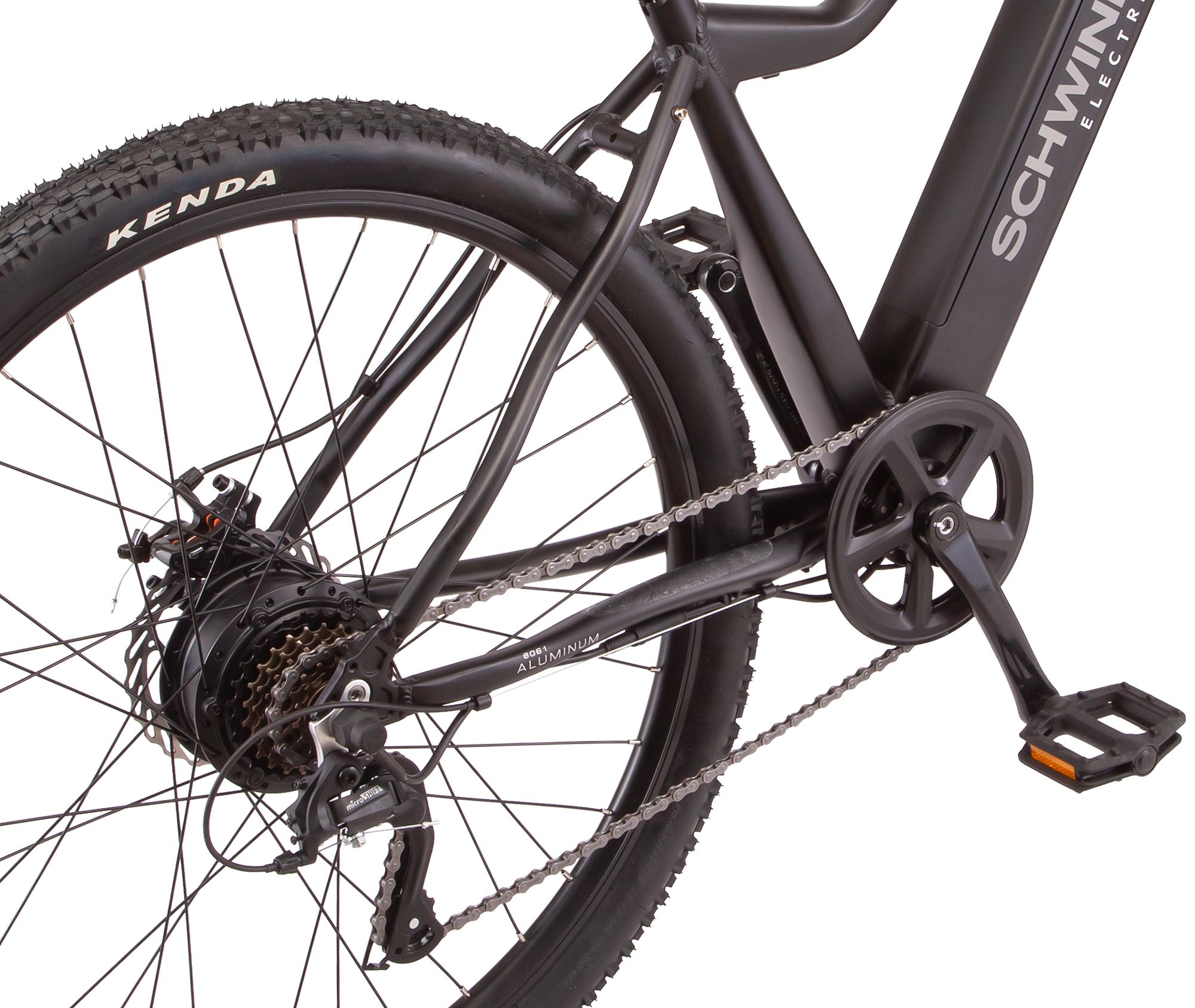

  • Made with a 7-speed drivetrain that allows you to adapt to your terrain
  • 29” wheel fits best riders between 5’9” – 6’0”
  • Like all Schwinn® e-bikes, the Ridgewood includes a 2-year warranty on the battery and electric assist parts, and a lifetime warranty on the frame and fork
  • SGS certified to ANSI/CAN/UL2849




NOTICE: Used Bikes and/or bikes purchased online that have been assembled are non-returnable. We strongly recommend that a professional bicycle mechanic properly assembles, repairs, and maintains the bicycle. Public Lands will provide free in-store assembly service by a certified technician for any bicycle purchased on our website or in our stores (proof of purchase required). If you choose to assemble the bicycle yourself, Public Lands is not responsible for injuries or damages resulting from improper assembly.


  • Brand : Schwinn
  • Country of Origin : Imported
  • Style : S7576T
  • DSG Pro Tips
  • Web ID: 22SCWM29RDGWDBKTHBIK
  • SKU: 23269116

Electrical Components:

E-System Drive Unit: 40 Nm

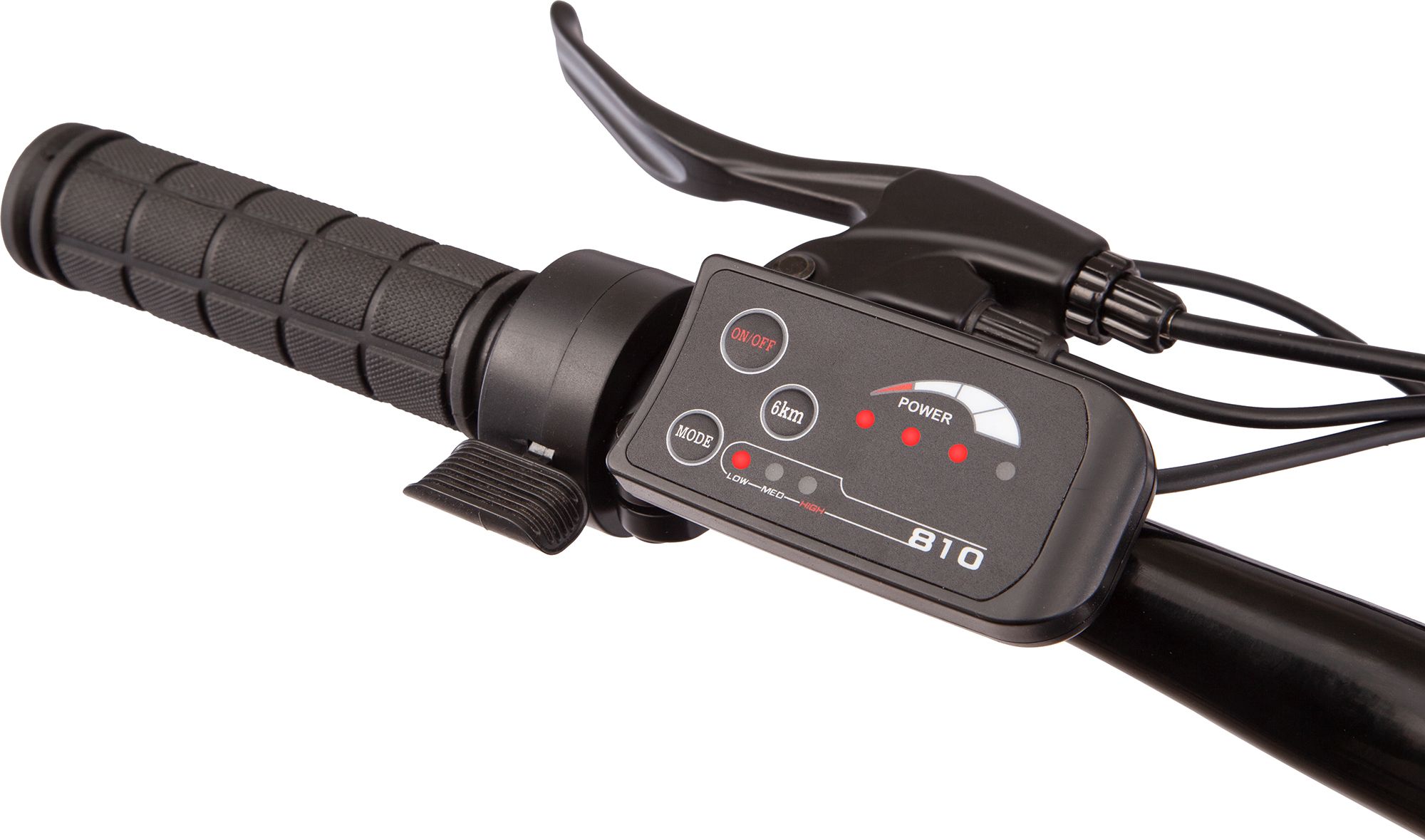

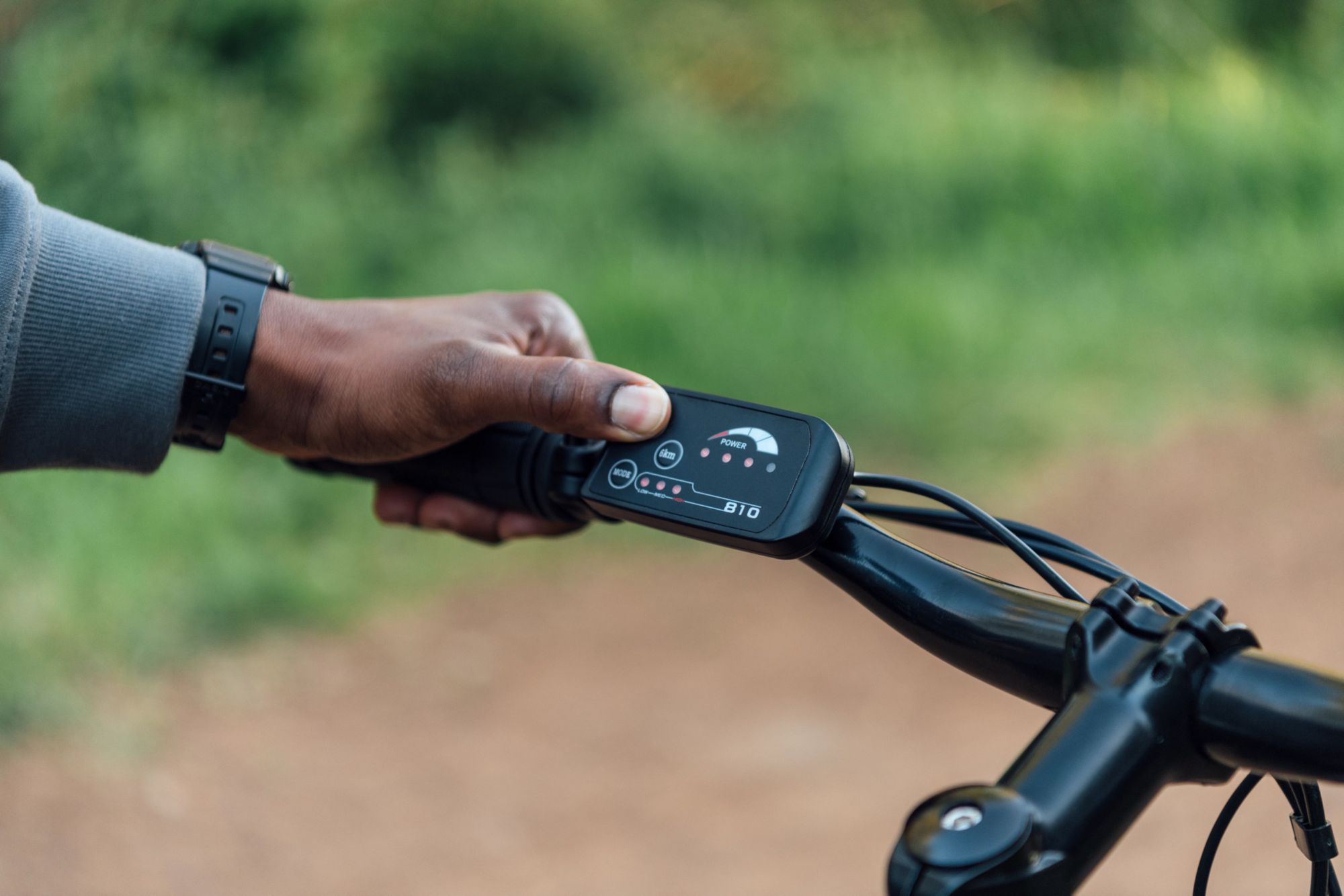

E-System Display: LCD
E-System Battery: Lithium Ion 250W

Frameset:

Frame Sizes: 18"
Frame: Schwinn Step Through Hybrid 6061 aluminum, DT mounted battery, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8” headtube
Fork: Suspension Fork
Suspension: Front
Headset: Threaded, retainer bearing

Drivetrain:

Shifters:Twist shifter 7-speed
Rear Derailleur:7-speed gearing
Crankset:3-piece alloy
Chain:7-speed
Cog Set:7-speed, 14-28T

Brakes:

Brakeset: Mechanical disc, aluminum, 180 mm front, 160 mm rear rotor
Brake Levers: Aluminum

Wheels:

Spokes: 14G/13G, steel
Rims: Aluminum, double wall, 19.4 mm ID, 36H, non tubeless
Tires: Kenda 700c x 38c wire bead
Front Hub: Aluminum, ball bearing, 100 mm bolt-on, 36H, 6-bolt
Rear Hub: Aluminum, ball bearing, 10 mm x 135 mm QR, 36H, 6-bolt

Components:

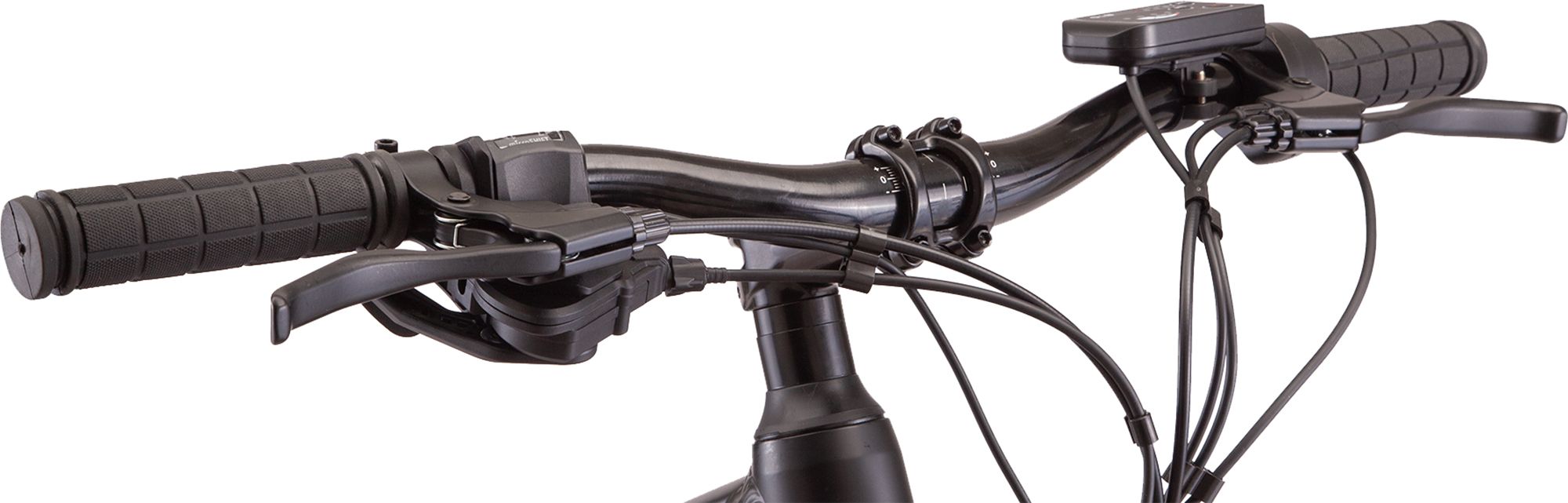

Handlebar: Schwinn, aluminum, 660 mm width, 30 mm rise, 31.8 mm clamp
Stem: Aluminum, threadless front load, adjustable rise 31.8 mm clamp adjustable alloy
Grips: 130 mm

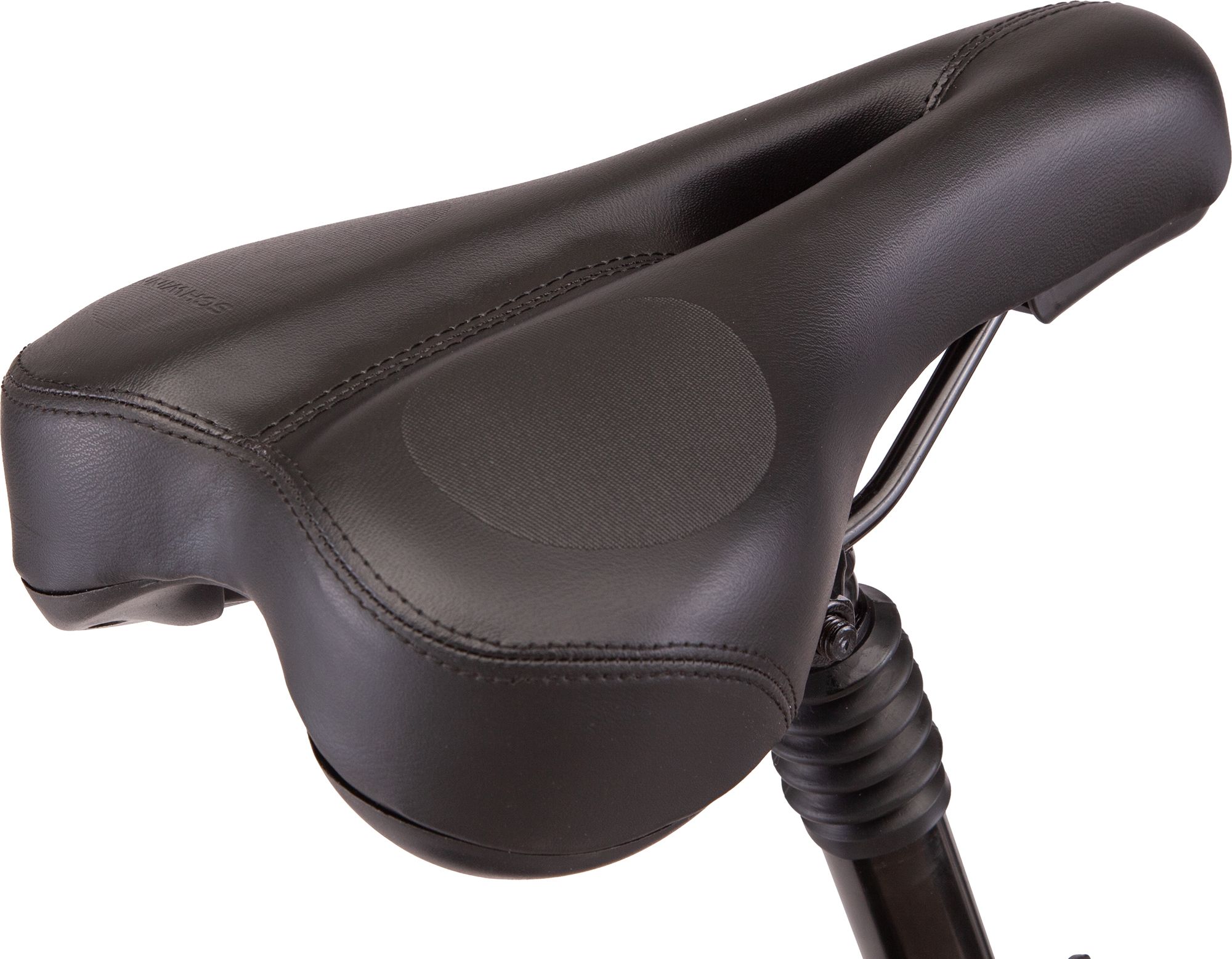

Seat Post: Steel 300 mm 20 mm offset suspension
Pedals: Nylon
